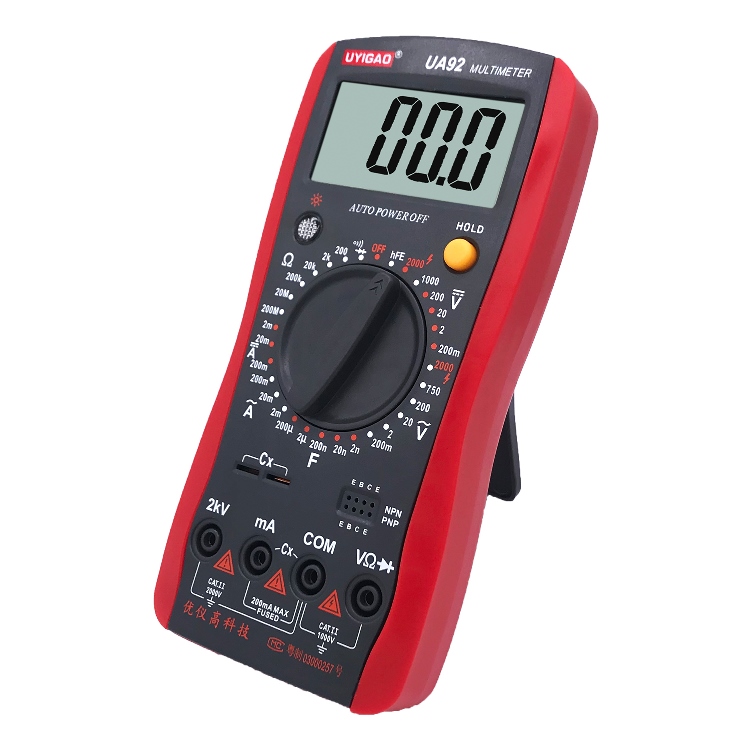

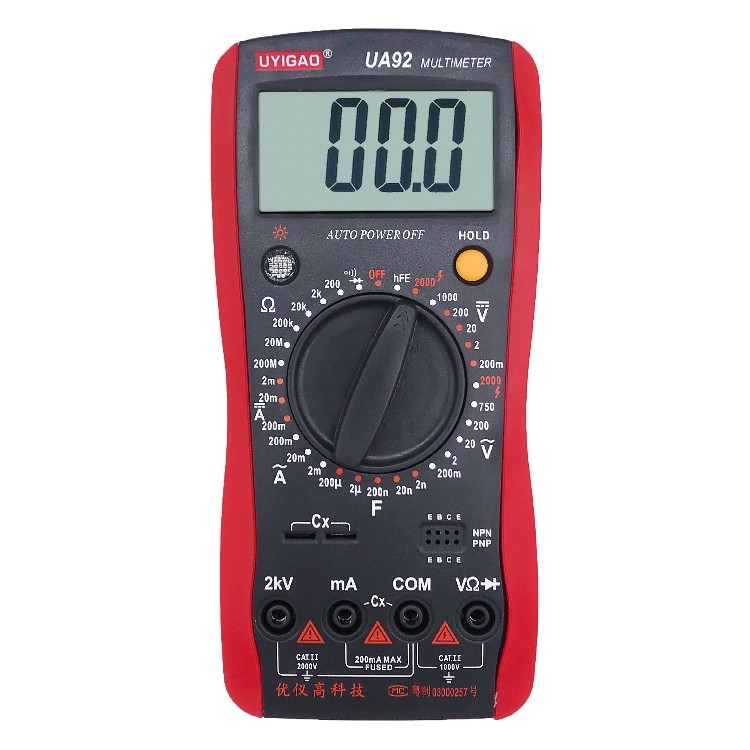

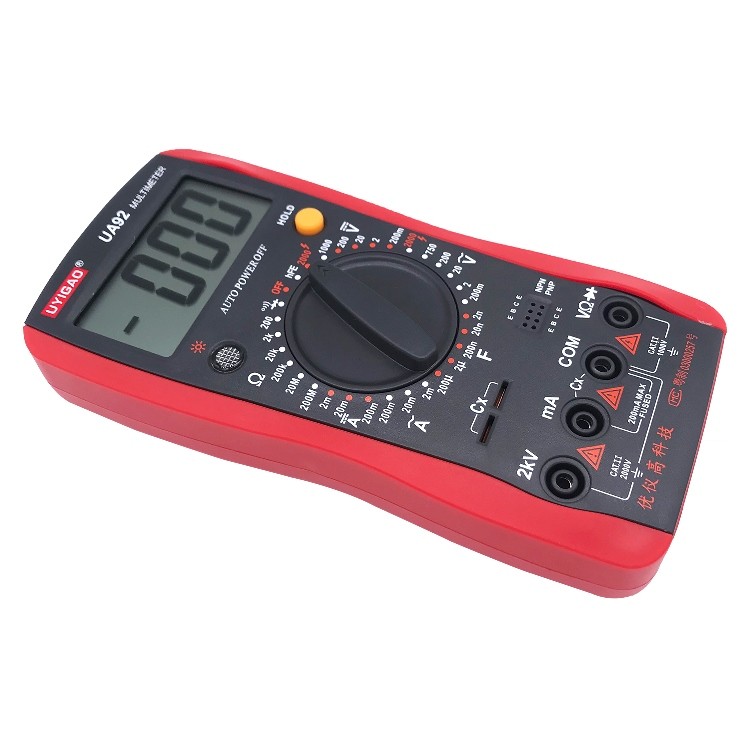

1000V 1500V 2000V VAC VDC high voltage DMM multimeter multimetro Digital Multimeter
2000V AC/DC panel corrected digital multimeter 3 1/2 bit, the maximum display: 1999 Overload With backlight, dimension and function symbols indication Automatic shutdown low battery indication shock protection
2000V VAC VDC high voltage DMM multimeter multimetro Digital Multimeter
Products overview:
Full protection function, high voltage ignition circuit design
New shockproof, streamlined design, comfortable feel
Large screen display
Strong anti-jamming capability
General characteristics:
| Basic function | Range | Accuracy |
| DC voltage AC voltage | 2000V | ±(0.5%+3) |
| DC current AC current | 2mA/20mA/200mA | ±(1.0%+3) |
| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200 MΩ | ±(0.8%+3) |
| Capacitance | 2nF/20nF/200nF/2uF/200uF | ±(2.5%+20) |
| Temperature | x | — |
| Frequency | x | — |
| Special function | ||
| Diode test Triode testing | √ | |
| Logic level test Continuity buzzer | √ | |
| Low battery display | √ | |
| Data hold Auto power off | √ | |
| Function protection | √ | |
| Anti-vibration protection | √ | |
| Input impedance for DCV | 10MΩ | √ |
| Backlight | — | |
| Sample frequency | 60Hz | √ |
| Operation | Manual range | √ |
| Maximum display | 1999 | √ |
| Display size | 63x32mm | √ |
| Power | 9V battery (6F22) | √ |
-Dimension: 185*90*35mm
-Weight: approx.300g
Features:
--Full-featured the wrong stalls as well as over-range protection.
--Anti-burn performance better automatic shutdown function.
--COMS integrated circuit, the principle of double integral A / D conversion.
--Automatic zero, auto-polarity selection.
--Parameter indicators.
--Power: 1 x 9V neda1604 or 6F22 Battery (Not include)
Package Contents :
1 x Digital Multimeter
2 x Leads
1 x User Manual
