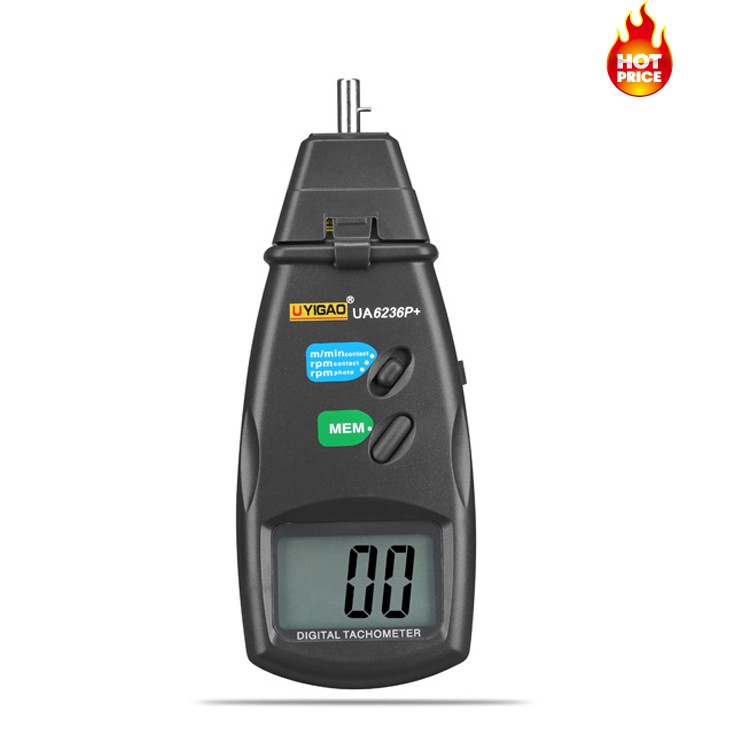

This tachometer has wide range of applications, such as measuring rotating speed of machine, motors, wheels, lathe for metal or wood cutting work, etc. Features: 1.Non-contact handheld digital tachometer with stable performance. 2.Automatic and manual measurement modes for selection. 3.Wide measuring range(2.5 to 99999 RPM) and high resolution.
Key Specifications/Special Features:
Display: 5-digit screen, width of 16mm
Test range:
Contact tachometer: 0.5-19999RPM/minute
Hand tachometer: 2.5-99999RPM/minute
Basic accuracy: ±(0.05%+1)
Basic function | UA6236P+ |
Resolution | 0.1RPM (2.5-99999RPM) 1RPM (over 1000RPM ) |
Simpling time | 1 second (over120RPM) |
Range select | automatic |
Working current | maximum 40mA |
Storage | automatic max, min last value |
Time base | 6MHz quartz crystal |
Power | (4x1.5V) the 5th battery |
Size | about 130*72*37mm |
Weigth | about 200g |
