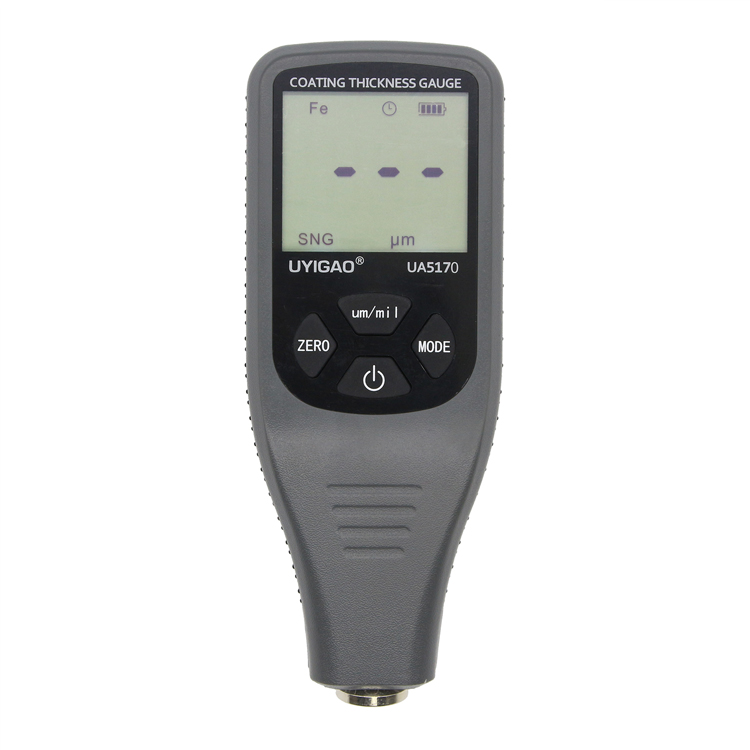

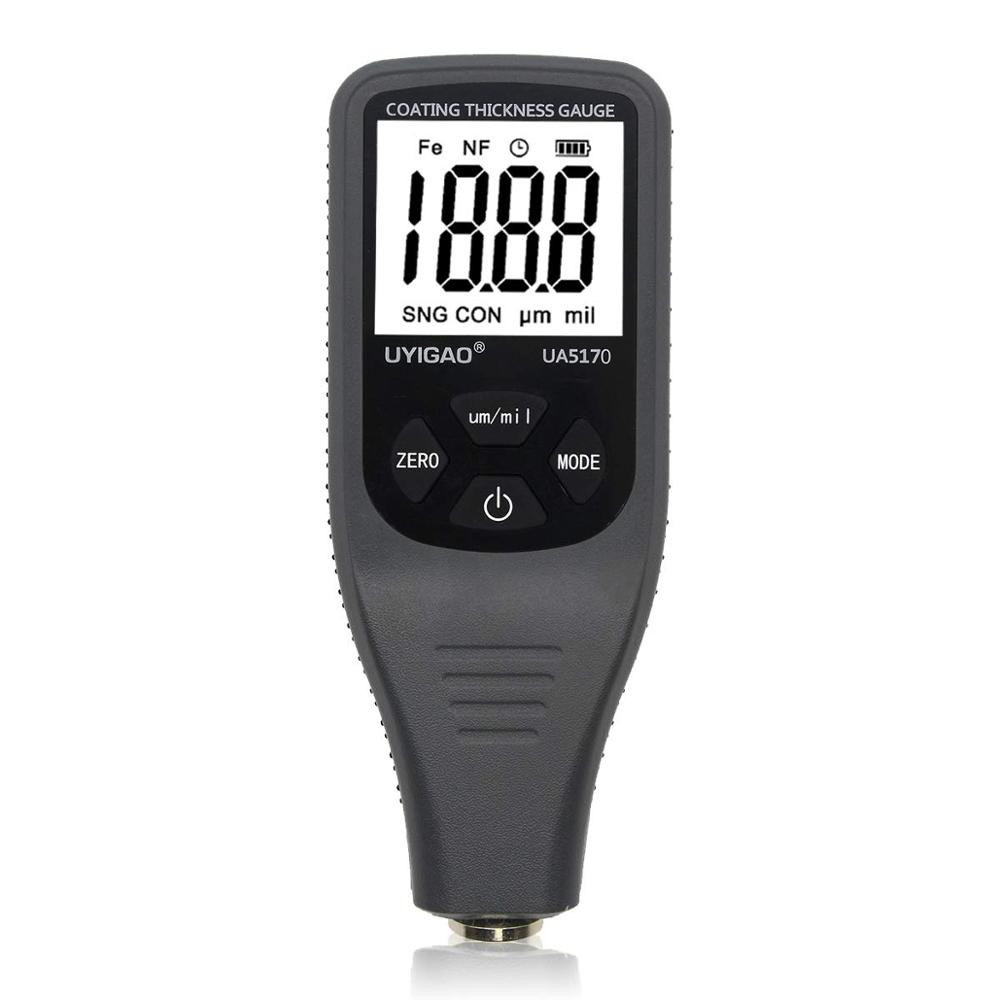

UYIGAO UA5170 Coating Thickness Gauge

The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.
The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.

UYIGAO UA5170 Thickness Gauge Digital Paint Coating Thickness Gauge feeler Tester Iron Aluminum Base Metal Thickness Tester Range 0~1.3mm

Features:

The thickness gauge is used to measure the thickness of the plated and coatedsheeton metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.
The gauge takes the precision integrated probe, and uses principles of electro-magnetic inductionand the eddy current effect, which automatically detects the attributeof substrates.

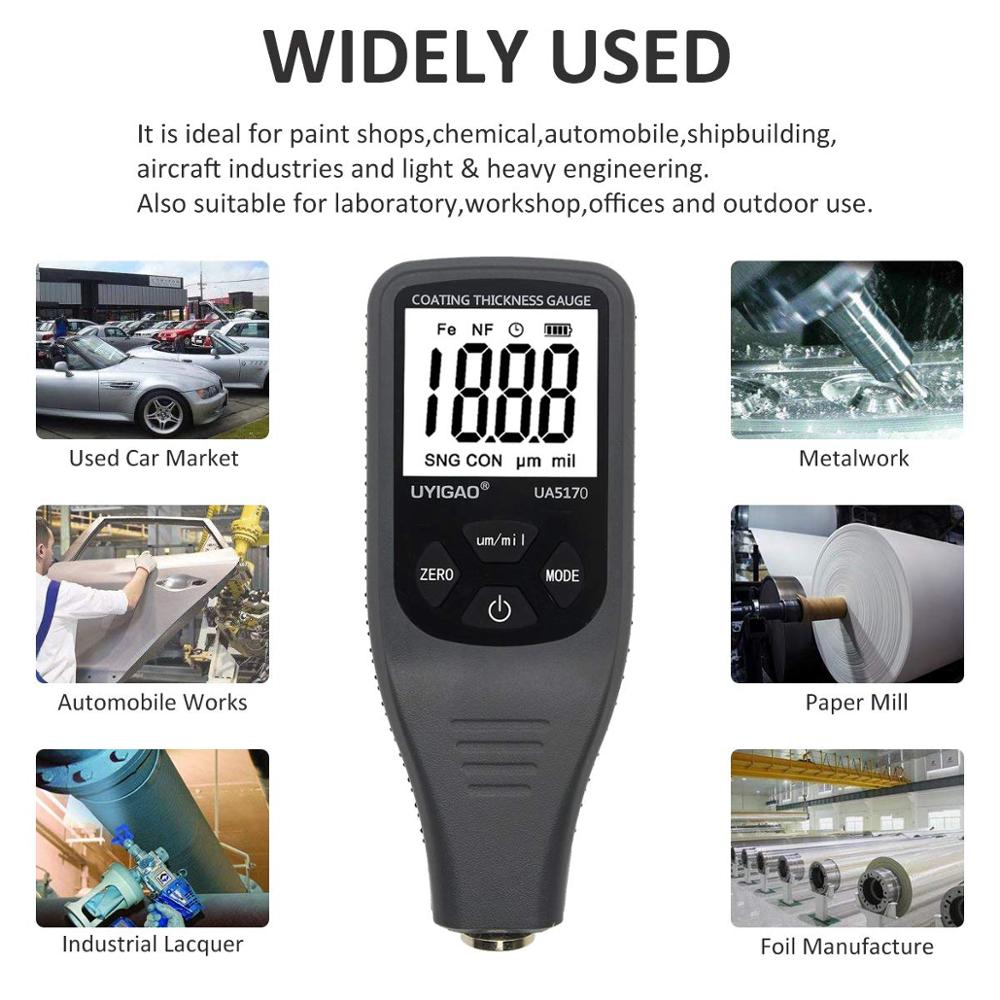

Application Field:

The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

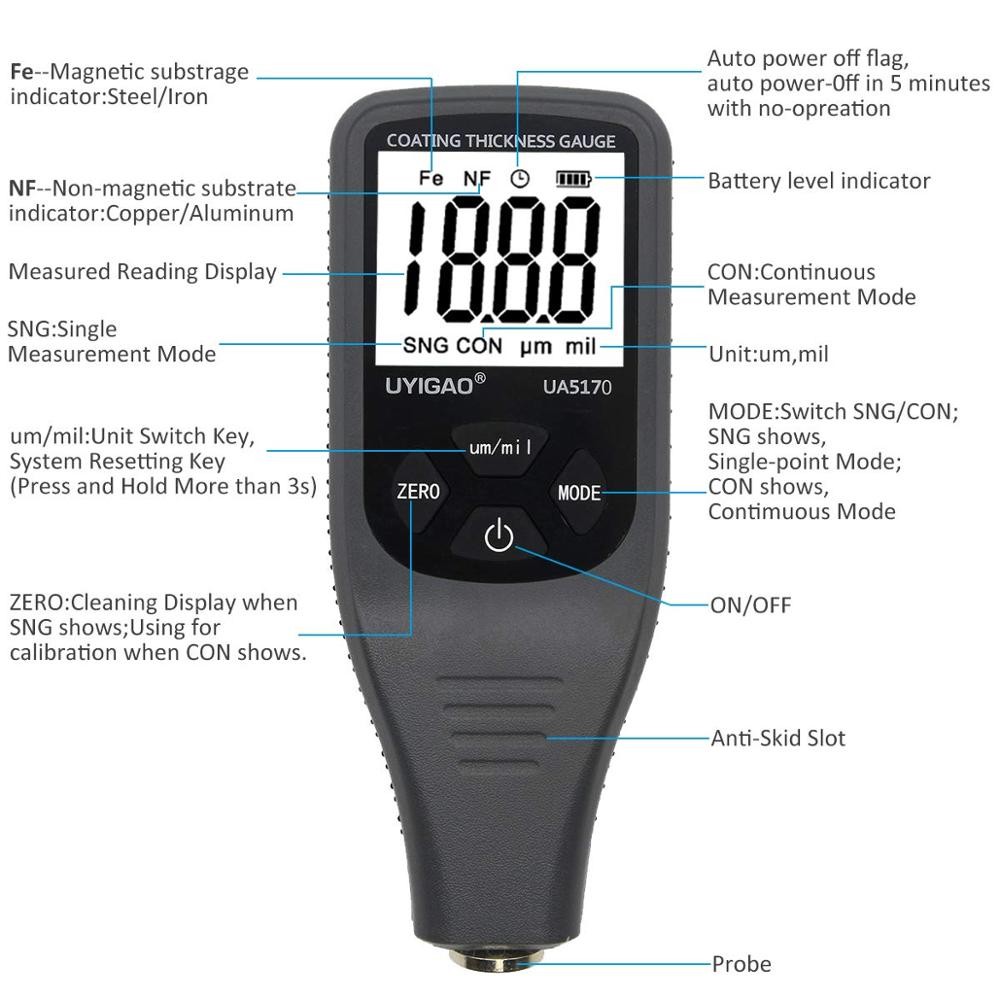

Operating Principle:

Thegauge adopts the principle of electromagnetic induction and eddy current effect.It has F probe and N probe.

1.F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating’s thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate.

2.N probe works on the eddy current principle and should be used for detecting the insulating coating’s thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate.

Specification:

	Probe F	Probe N
Principle	Magnetic Induction	Eddy Current
Range	0~1300um 0~51.2mil	0~1300um 0~51.2mil
Accuracy	±(2.5%+1um) ±(2.5%+0.04mil)	±(2.5%+1um) ±(2.5%+0.04mil)
Resolution	0.1um/0.01mil	0.1um/0.01mil

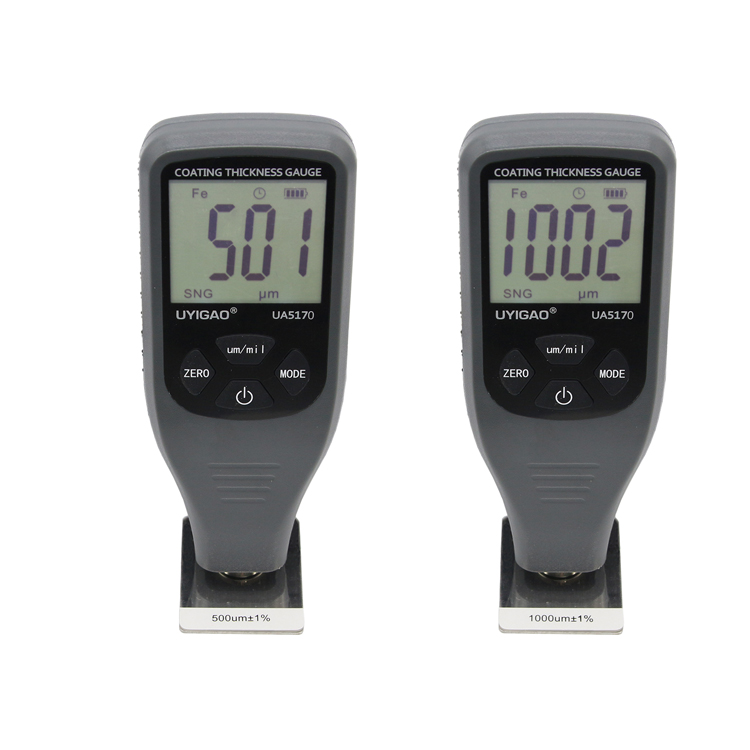

Calibration	Points: ZERO/50/100/250/500/1000um
Units	um, mil
minimum curvature radius convex: 1.5mm
minimum curvature radius concave: 25mm
minimum measuring area: Diameter 6mm
minimum thickness of substrate	0.5mm(0.02”)	0.3mm(0.012”)
Power	4 x AAA batteries
OperationEnvironment	Temperature:0~40℃(32~104℉) Humidity:20%~90%RH

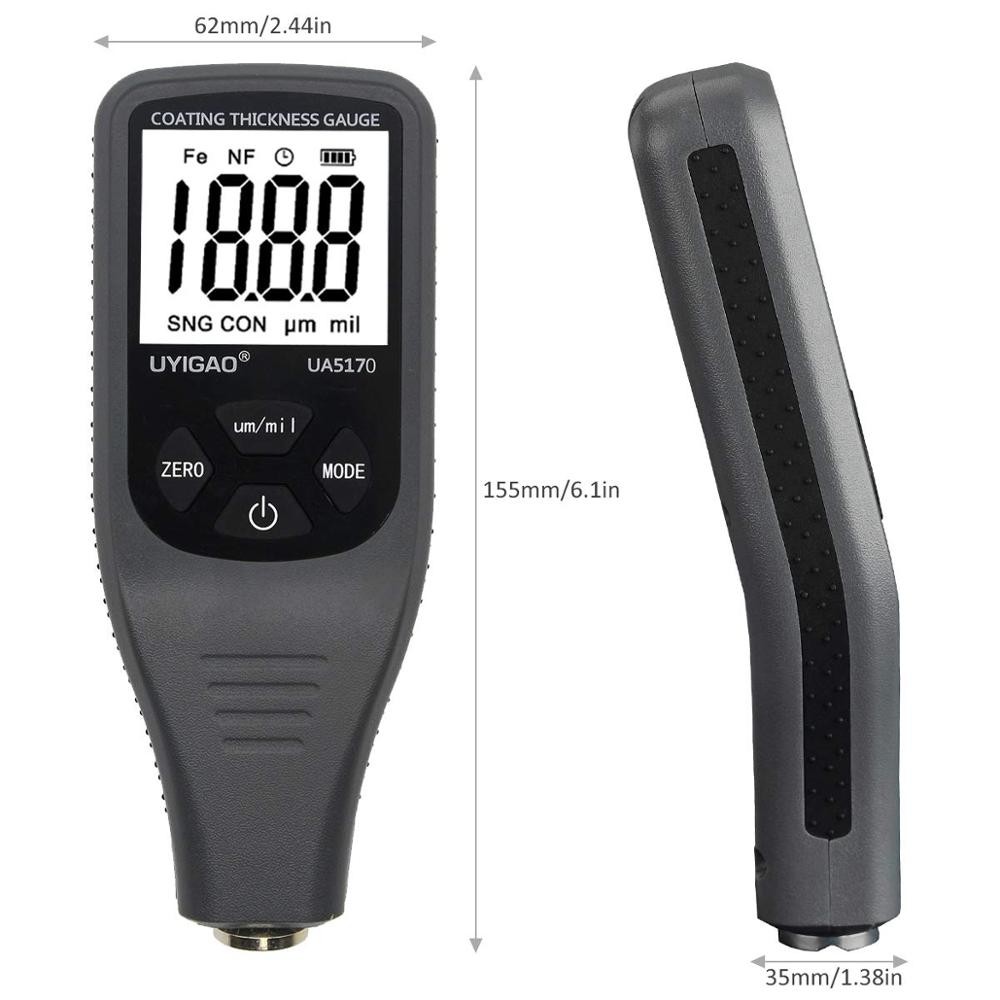

Size	155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)
Weight	125g(4.41oz)

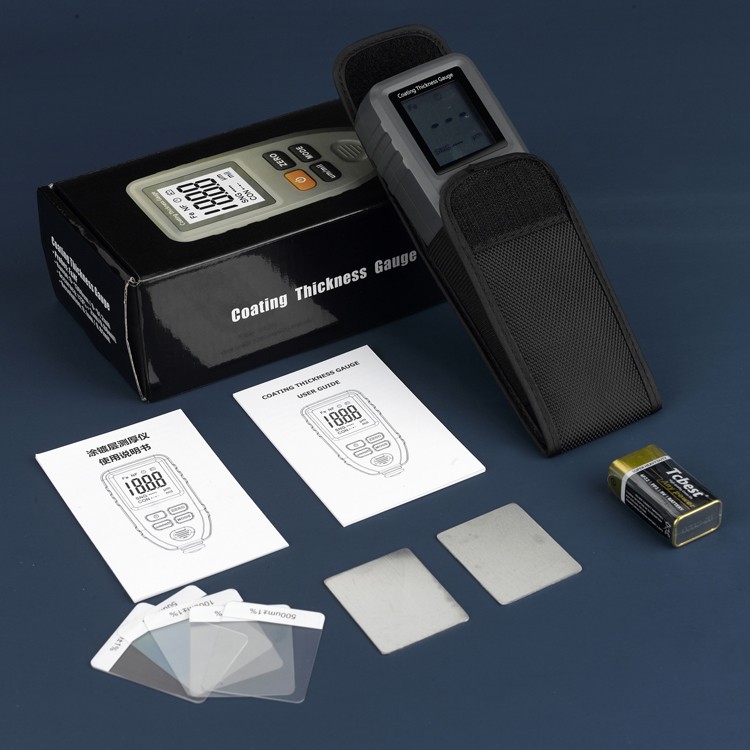

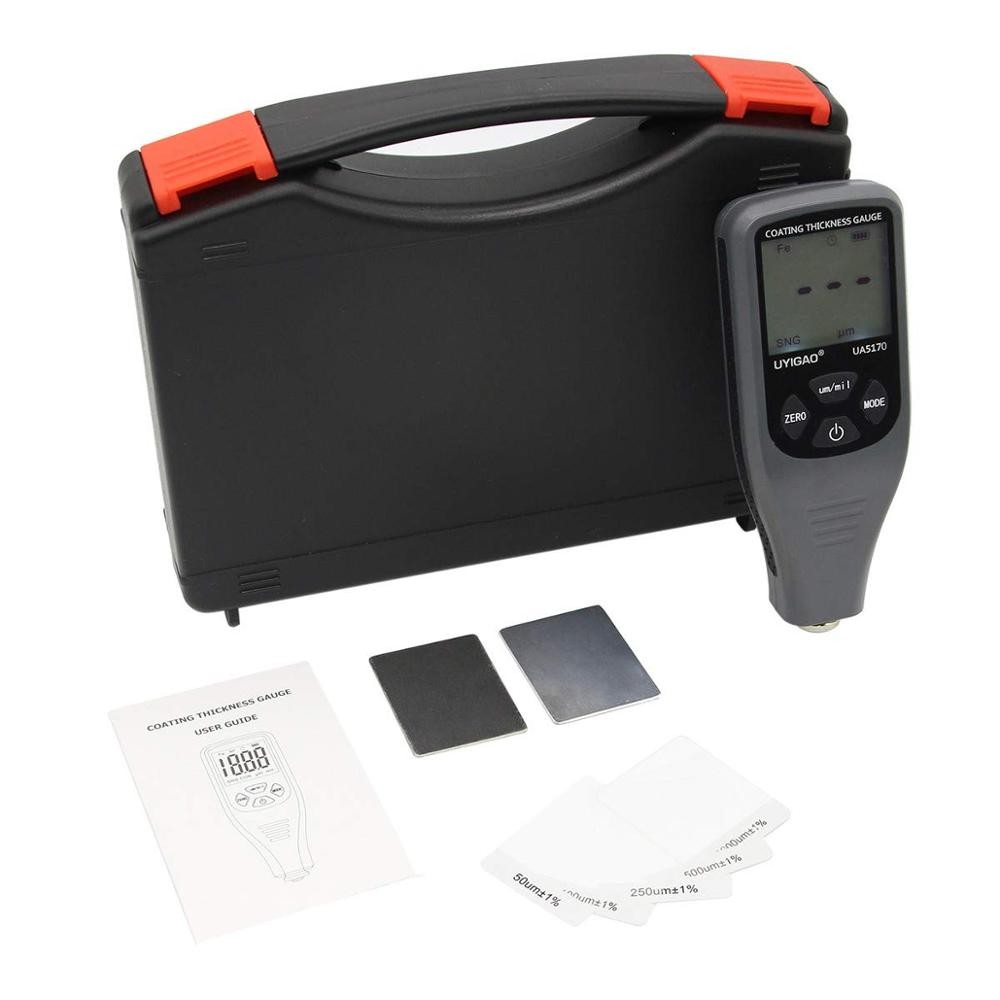

Package includes:
1 x Coating Thickness Gaug (Batteries are not included)
1 x English User Manual
2 x Substrates
5 x Standard foils
1 x Tool box

Note:
For your safety and quickly receive the item, batteries are not included.

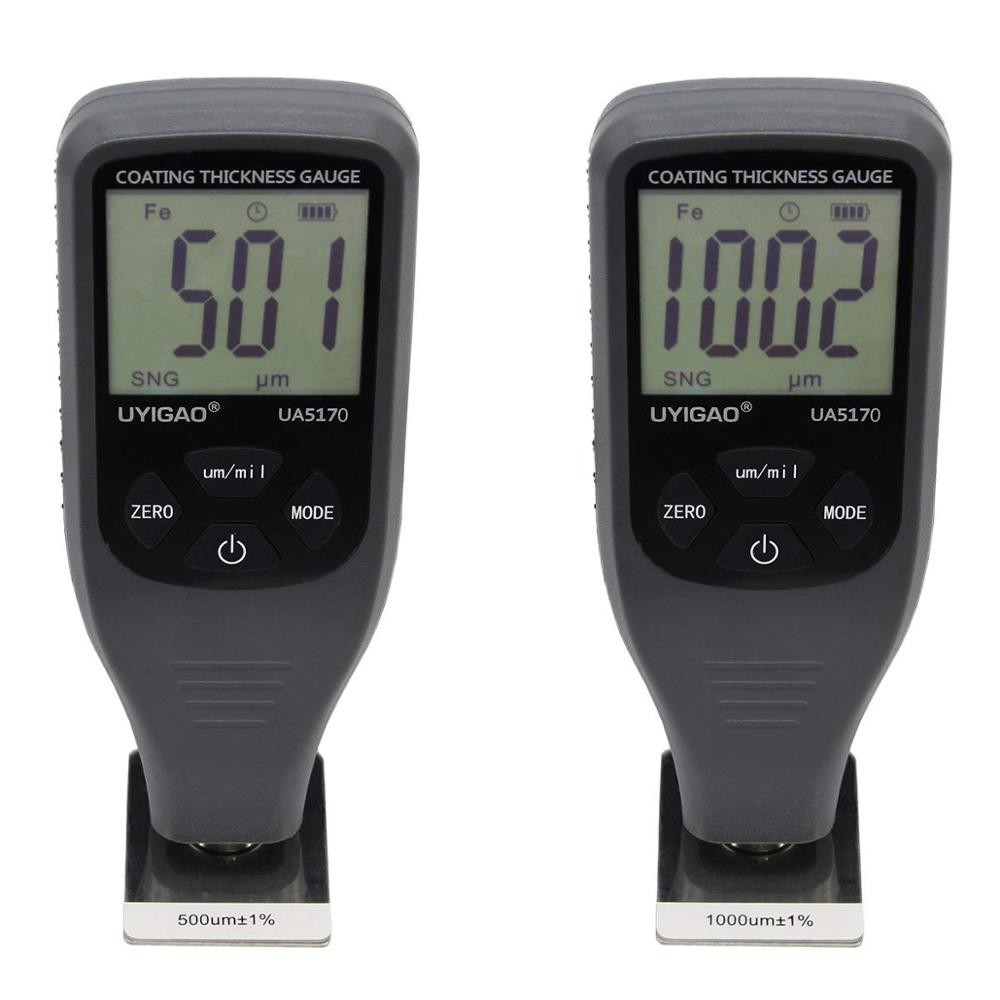

Details pictures:
