mini pocket card digital multimeter UA18

FEATURES:

UA16 / 18 is a portable notebook-type auto range digital multimeter (UA16 is 3 1/2 digits, UA18 are 3 3/4 digits). It is fully functional, stable performance, high accuracy, low power consumption, the new structure, safe and reliable, can be used to measure AC and DC voltage, frequency, duty cycle, resistors, capacitors, rubbish tube forward voltage drop and continuity testing, is the majority of the ideal measuring instruments (UA16 cannot measure frequency, duty cycle, capacitance).

SPECIFICATIONS:

DC Voltage: 400mV / 4V / 40V /300V±(0.8%+1)

AC voltage: 4V / 40V / 300V ± (1.2% + 3)

Resistance: 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ ± (1% + 2)

Capacitance: 4nF / 40nF / 400nF / 4uF / 40uF / 200uF ± (4% + 3)

Frequency: 10Hz-100kHz ± (0.5% + 3)

Automatic function

Duty cycle: 0.1% -99.9%

Diode test

Continuity Buzzer

Relative value measurement

Data Hold

Full symbol display

Automatic shutdown

Low Voltage Display

Input impedance: ≥10MΩ

Maximum display: 1999

Power: 3V button battery (CR3032) not include battery

LCD Size: 44 × 23mm

Body color: red

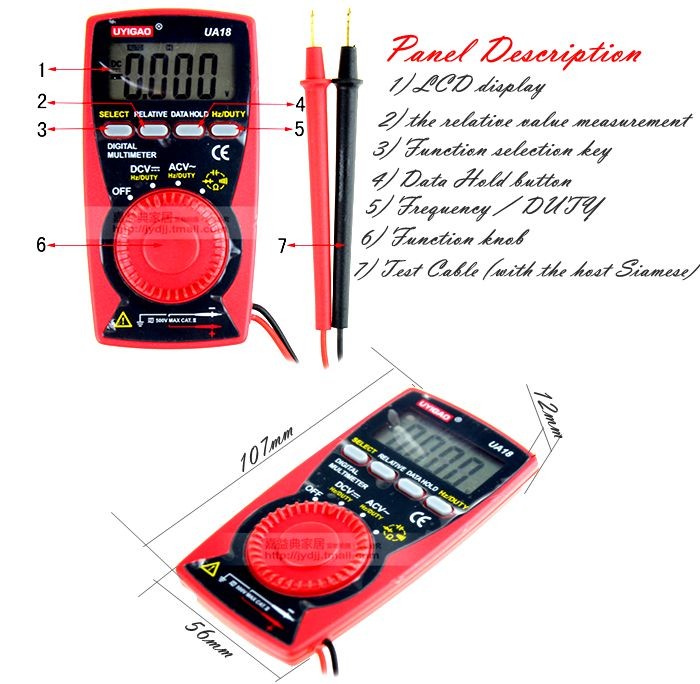

Dimensions: 107 × 56 × 12mm

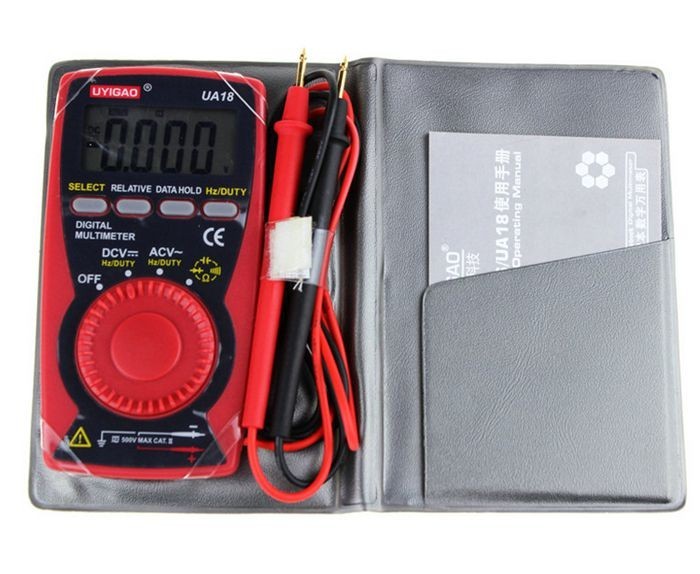

Standard accessories: table pen, manual, warranty card

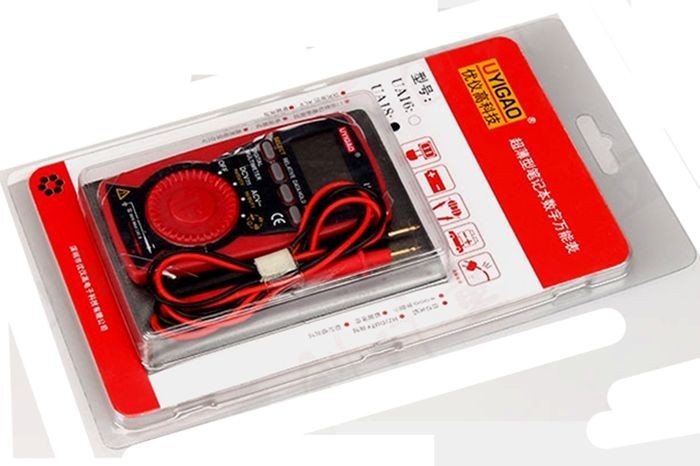

Standard packaging: blister and card.
