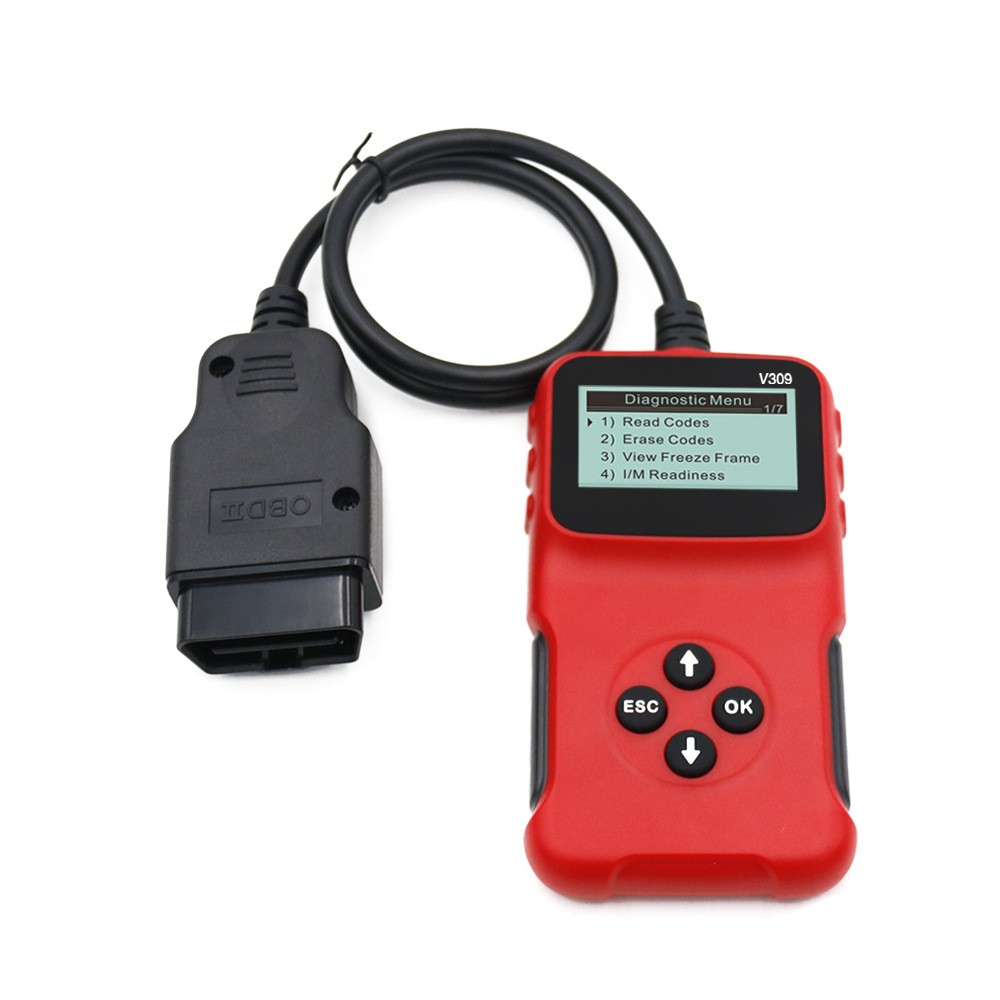

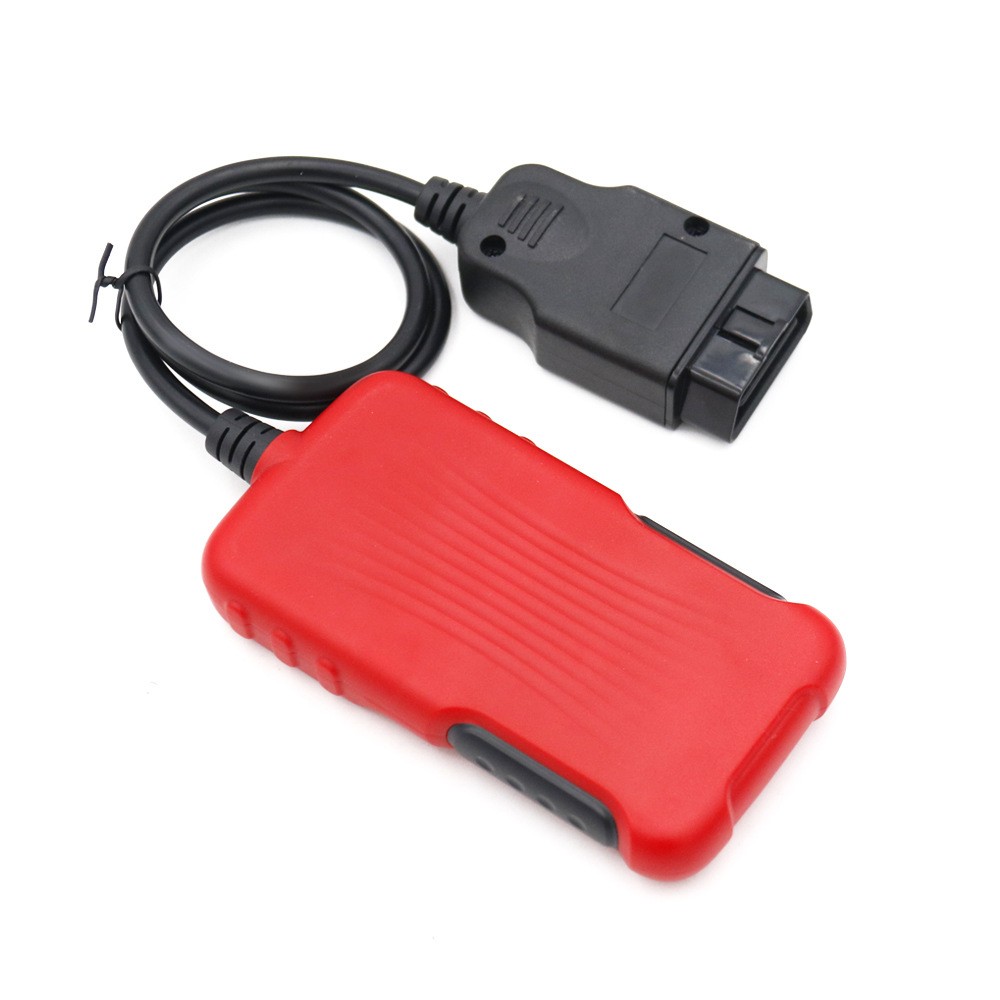

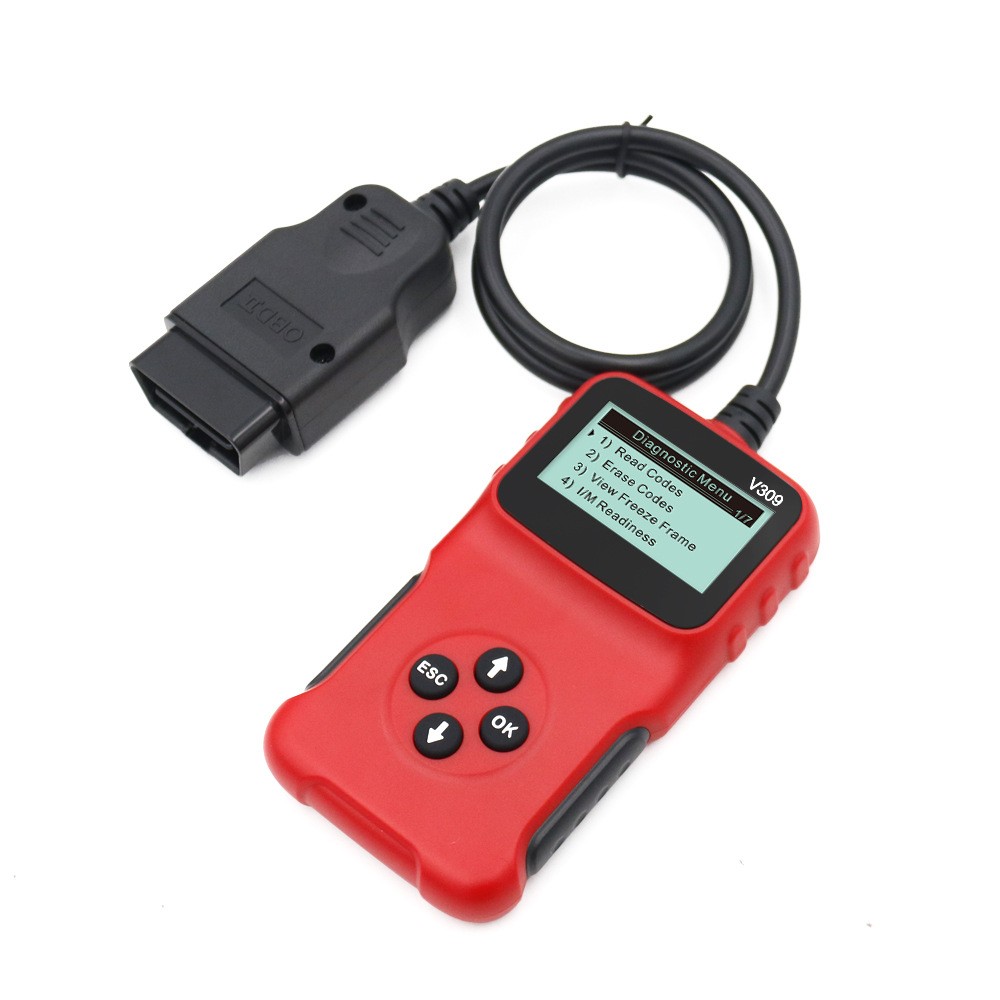

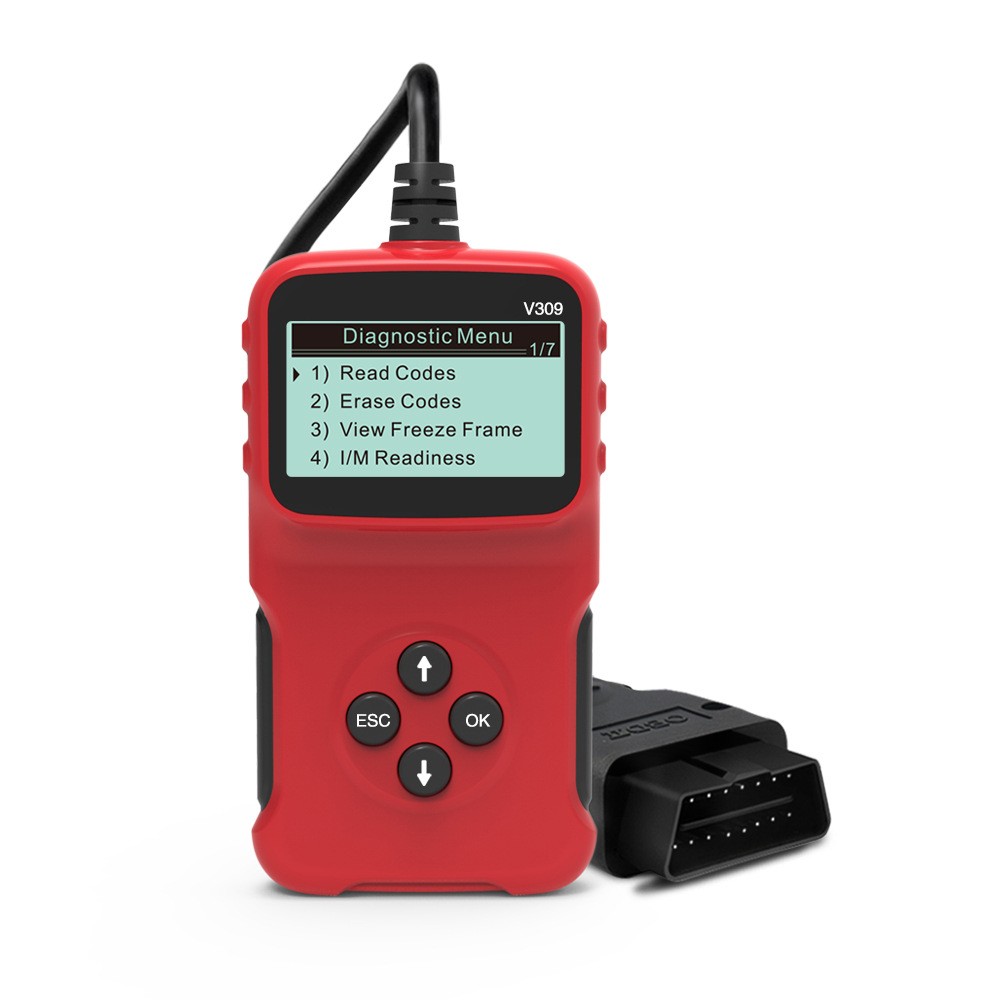

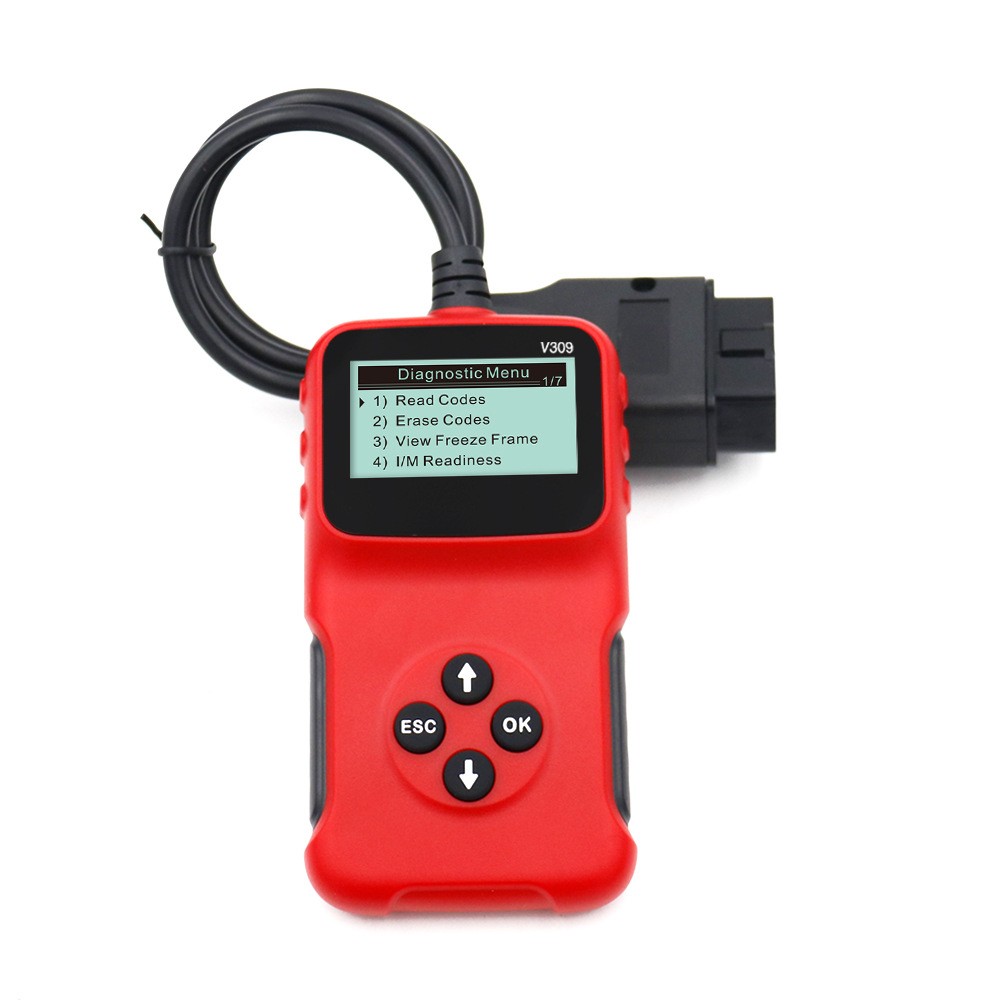

OBD2 OBD II 2 OBDII ELM 327 Car Auto Diagnostic Scanner

 OBD2 OBDII Auto Car Diagnostic Scanner Handheld Car Diagnostic Repair Tool Auto Diagnostic Tool

Features:

1. Read the error diagnosis code-general and manufacturer-specific, and display their meaning (the database has more than 3000 common code definitions)
2. Clear the error code and turn off the MIL ("Check Engine" indicator)
3. Display current sensor data, including:
Engine speed per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Speed
Throttle absolute position
With short-term fuel status
Associated oxygen detection voltage
Fuel system status
Fuel pressure
Fuel consumption monitoring
Data graph display and logging
Freeze frame data
Continuous and discontinuous oxygen detection results
4. Support 5 languages
English, French, German, Spanish, Dutch

Function:
1. Reads & clears trouble code
2. Reads live data stream
3. Displays I/M readiness Status
4. Detects OBD-II Freeze Frame Information
5. Retrieves Vehicle information (VIN, CID and CVN)
6. Works on most 2001 and later OBD II compliant US, European and Asian vehicle
7. Multi Languages: English, French, German, Spanish, Dutch
8. Easily determines the cause of the check engine light.
9. Turns off check Engine light, clear codes and resets monitors

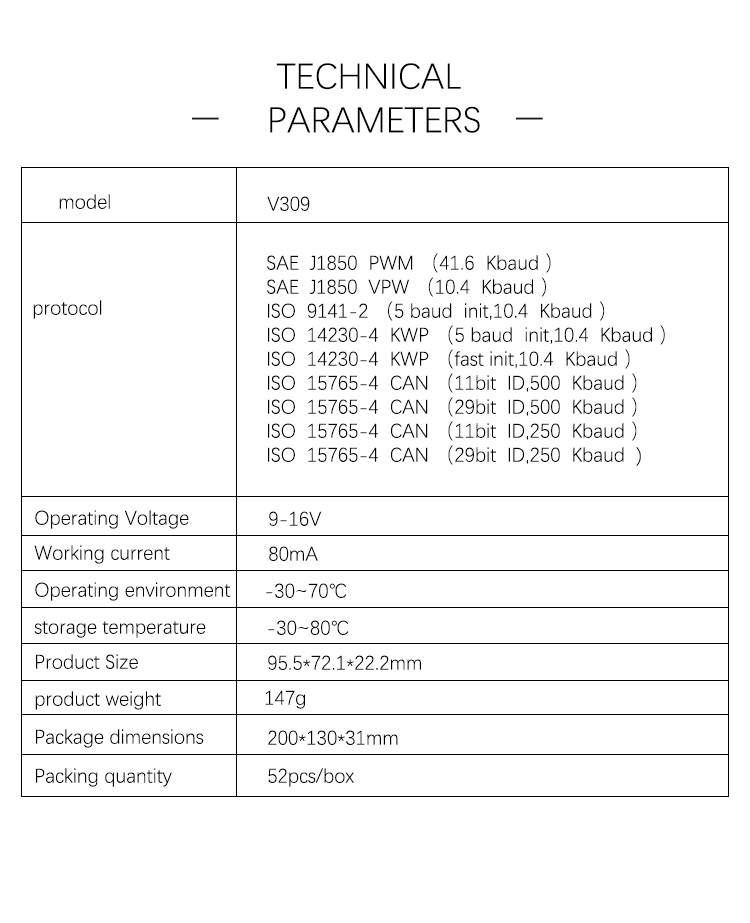

Specifications:
1. Easy to handle it, no need to install software.
2. Plug-and-play interface and highly reliable
3. Large LCD screen easy to read
4. No batteries,supply power through detachable OBDII cable
5. Small size and conveniently fits in your palm
Main control: St

Display: backlight, 128 x 64 pixel display
Operating temperature: 0 to 50 C (32 to 122 f)
Storage temperature: - 20 to 70 C (- 4 to 158 f)
Voltage: 8v-15.5v from vehicle battery
Working current: 80mA
Package Size: 20 * 13 * 6cm / 7.87 * 5.12 * 2.36in

Packing List:

Notes:
Support agreement:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
