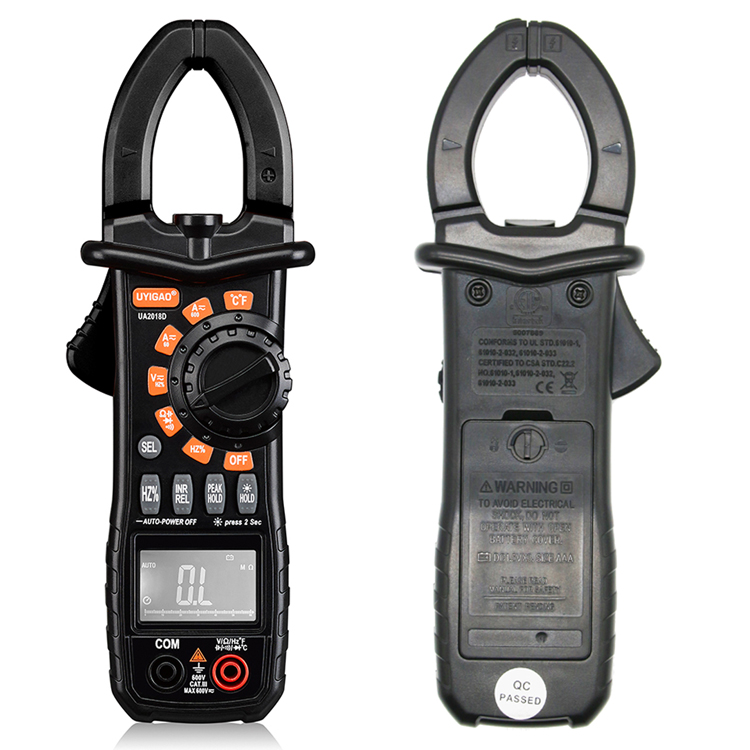

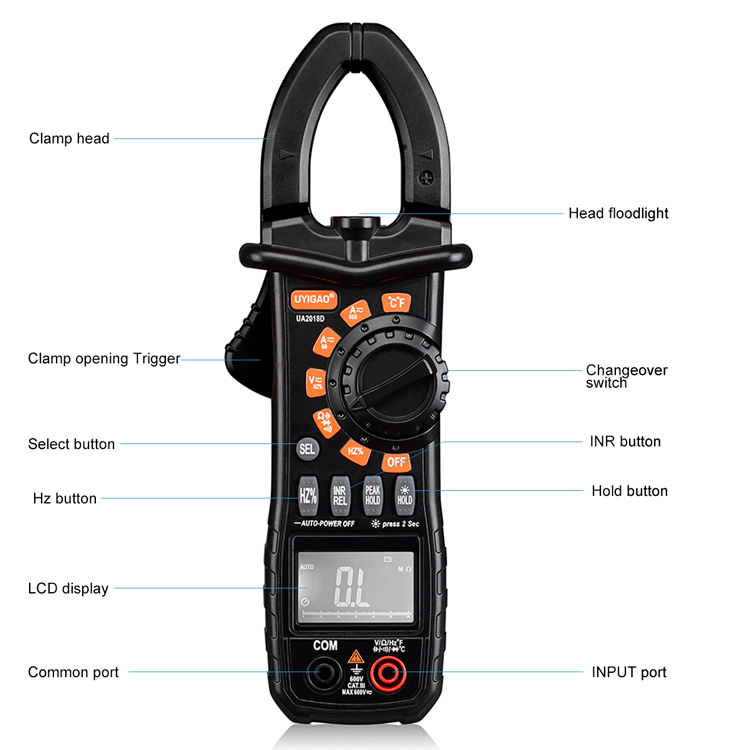

UA2018D AC/DC Clamp Meter

 Digital clamp meter, AC/DC Current AC/DC Voltage Resistance Capacitance Temperature Frequency Duty Ratio Inrush Current NCV Diode Tester with Clam& Flashlight

UA2018D General characteristics:

CE Certified Clamp Meter for Testing AC/DC Current, AC/DC Voltage,Resistance,Capacitance,Temperature,Frequency,Inrush Current, NCV, Diode.

DC Voltage and Accuracy:6V~600V ±(0.8%+5)

AC Voltage and Accuracy: 6~600V ±(1.2%+5)

Resistance and Accuracy: 600Ω~60MΩ ±(1.2%+5)

Temperature and Accuracy:-50°C-300°C±(1.0%+4)

Temperature and Accuracy:301°C-1000°C±(1.9%+5)

Temperature and Accuracy:-58°F-600°F±(1.2%+6)

Temperature and Accuracy:601°F-1832°F±(1.9%+6)

Duty Ratio(AC Voltage test):10%-90%±(0.5%+3)

Frequency(AC Voltage Test):0Hz~10MHz ±(0.3%+5)

AC Current and Accuracy:6A~600A ±(2.5%+8)

DC Current and Accuracy:60A~600A ±(2.5%+10) Capacitance:9.99nF/99.99nF/999.9nF/9.999mF/99.99mF/999.9mF(3.0%+5)

Inrush Current: 6A-600A

Max display value: 5999

NCV Test: Yes

Diode Test: Yes

ON-OFF Buzzer: Yes

Low Battery Display: Yes

Data Hold: Yes

Auto Power off: Yes

Function Protection: Yes

Operating Mode: Auto+ Manual Range

Back Light Function: Yes

Back Lighting: Yes

Led Torch: Yes

LCD Size:38x28mm

Max Clamp Jaw Opening:φ36mm

Power Supply: AAA 1.5V*3 Batteries

Weight:240g

Sampling Rate: about 3 times / sec.

Display: 3 number 3/4 digital LCD display.

Clamp Flashlight , LCD Backlight, Date Hold and Low Battery Indication.

Power: 3 x AAA 1.5V (batteries are not included )

Maximum jaw opening size: 36mm

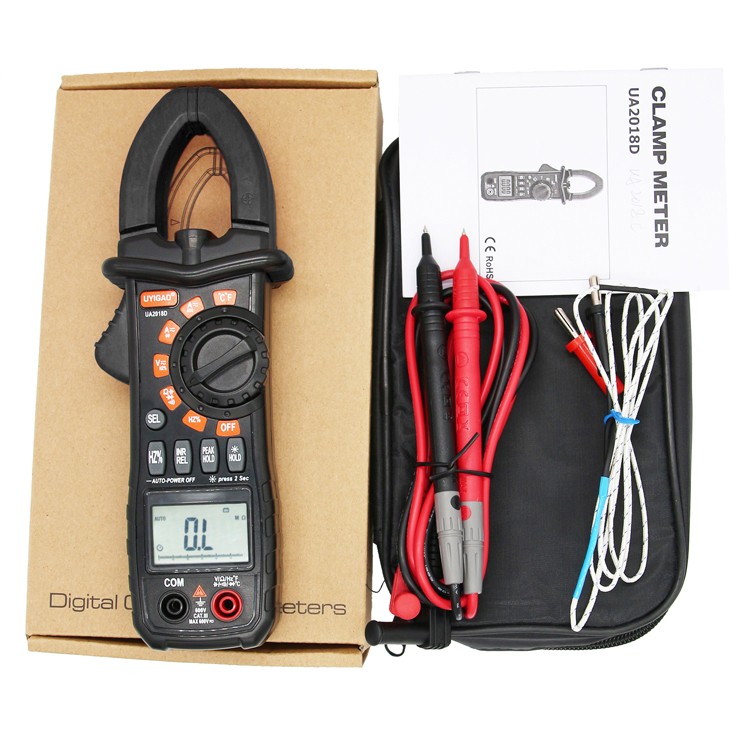

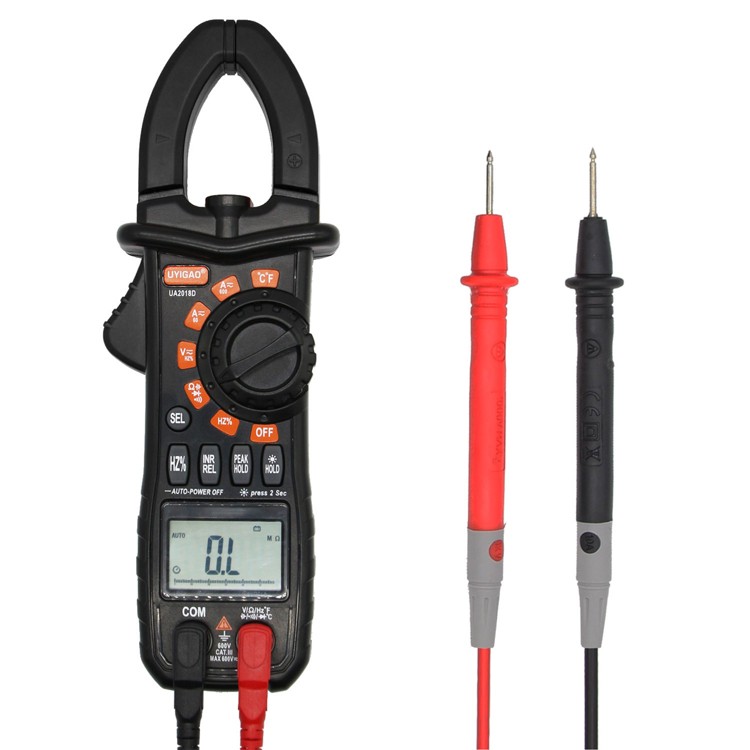

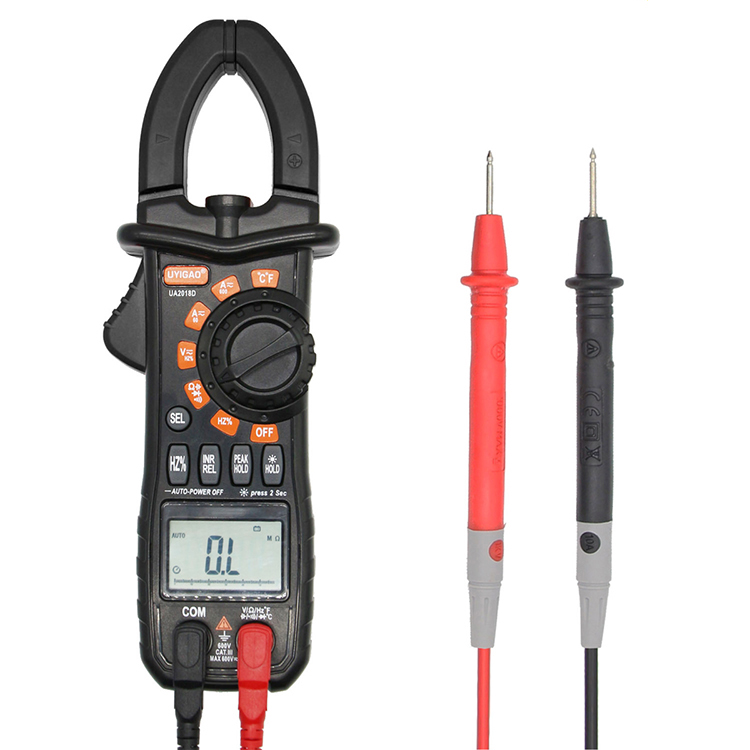

Comes with upgraded AC1000V class III test leads.

Overload protection: 600V DC AC RMS
