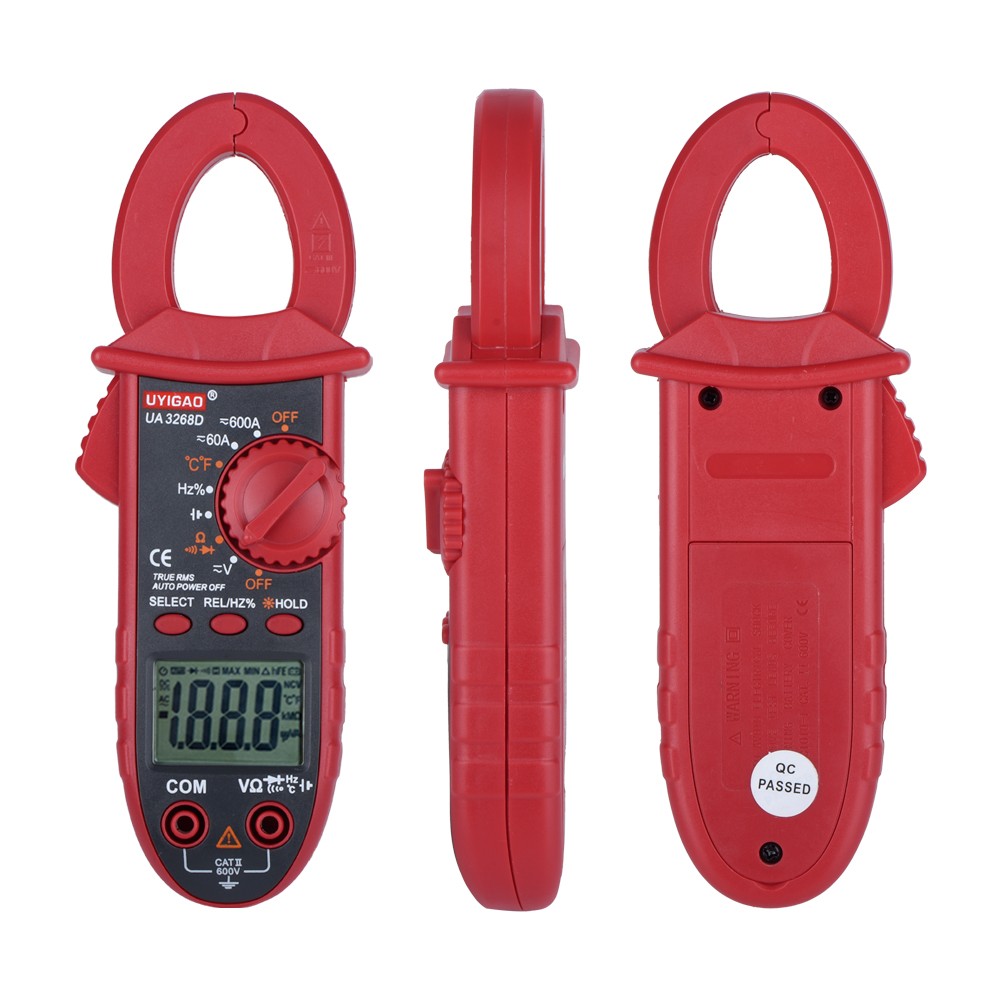

ua3268d ac/dc clamp meter

Electricity is complex due to its various aspects, there are also different devices that could be used to measure the different categories of electricity, and one of them is the clamp meter.

The clamp meter is used by electricians and DIY enthusiasts to measure direct currents, Alternating currents, DC voltage, AC voltage, resistance, and other aspects of electricity, like frequency, continuity, temperature, capacitance, and a lot more.

alibaba.com

6000 Counts Auto & Manual Range Digital AC DC Amp clamp meter with Inrush Current TestDual Leads High Precision Tester Meter Digital Tester UA3268D Ammeter Voltmeter Ohmmeter Diode Digital AC/DC Clamp Meter

Key Specifications/Special Features:

UA3268D clamp meter, it is a kind of stable performance, safe and reliable communication instrument
Full range of overload protection circuit, the unique design make it become the superior performance of special electrical and instrument
Ideal tool for smelting, manufacturing, petroleum, electric power, chemical and other industries

Basic features	Range	Accuracy
DC voltage	6V/60V 600V	±(0.8%+5) ±(1.0%+5)
AC voltage	6V/60V 600V	±(1.2%+5) ±(1.5%+5)
DC current	60A/600A	±(2.5%+10)
AC current	60A/600A	±(2.5%+8)
Resistance	600Ω/6kΩ/60kΩ/600kΩ 6MΩ/60MΩ	± (0.8%+3) ± (1.2%+3)
Capacitance	9.999nF/99.99nF/999.9nF 9.999uF/99.99uF/999.9uF 9.999mF 99.99mF	±(3.0%+5) ±(3.0%+5) ±(5%+5) No specify
Frequency (AC voltage test)	10-100kHz	±(0.3%+5)
Duty ratio(AC voltage test	10-90%	±(0.5%+3)
Temperature	-50 to 300ºC,	±(1.0%+4)
Temperature	301 to 1000 ºC	±(1.9%+5)
Special function
NCV test	×
Diode test	√
On-off buzzer	√	—
Low battery display	√	—
Data hold	√	—
Auto power off	√	—
Function protection	√	—
Operating Mode	Auto + manual range	—
Backlight	√	—
Display	5999	—
LCD size	24.3x34.6mm	—
Clamp opening size	28mm
Features description
Product weight	160g
Product size	185 * 25*51
Body color	Steel gray and red

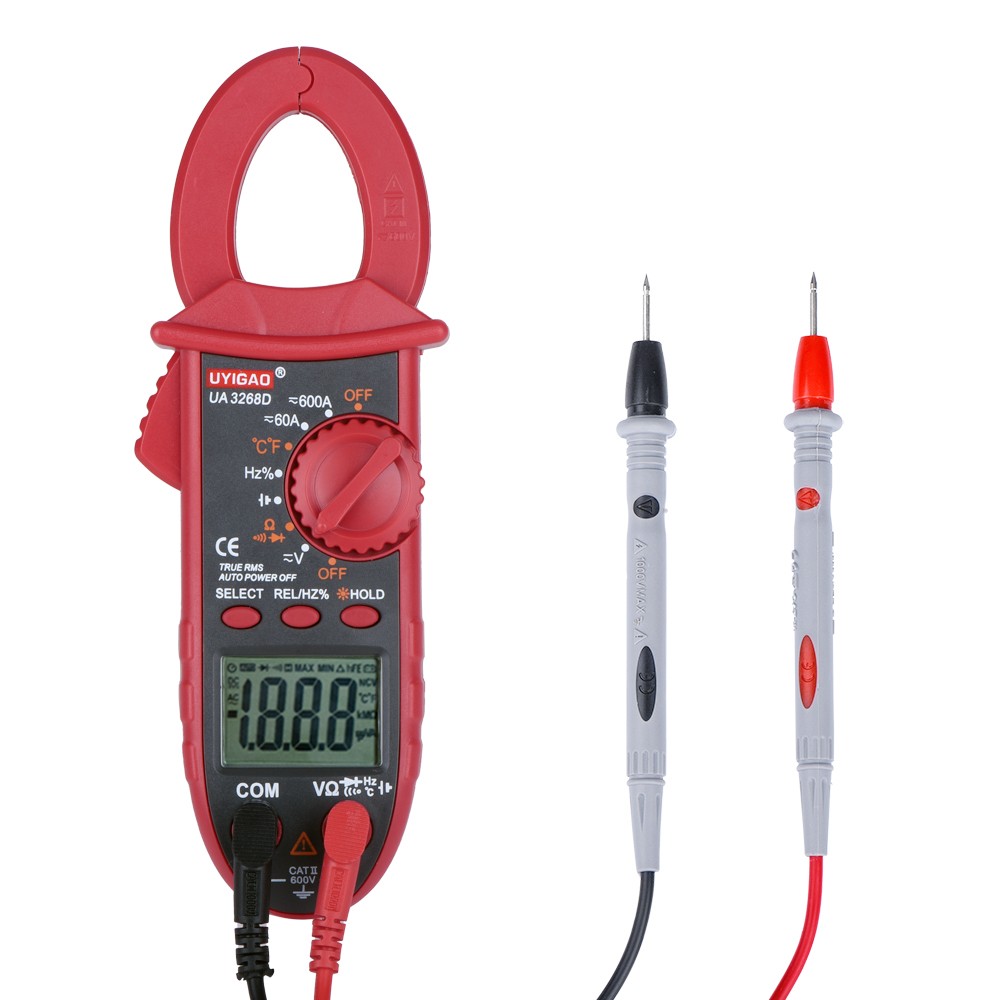

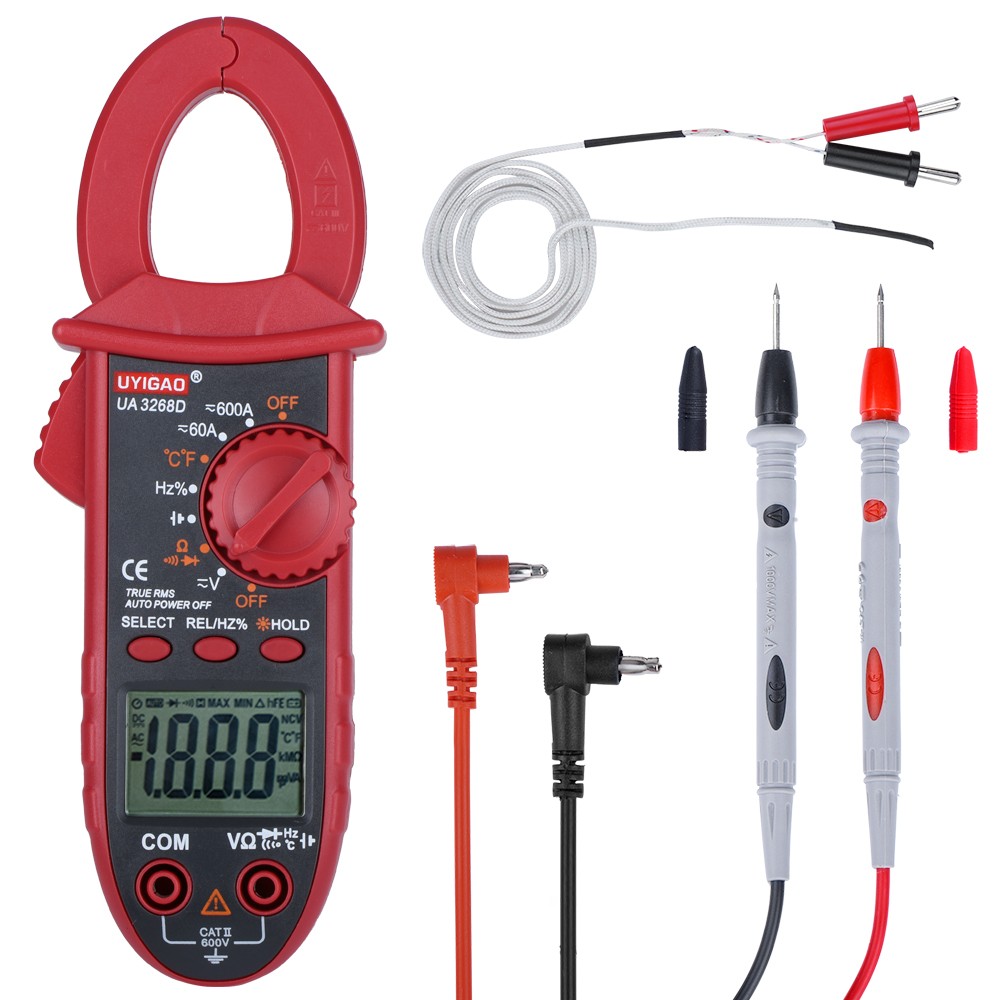

Standard accessories	Test leads, battery, AAA 1.5V battery

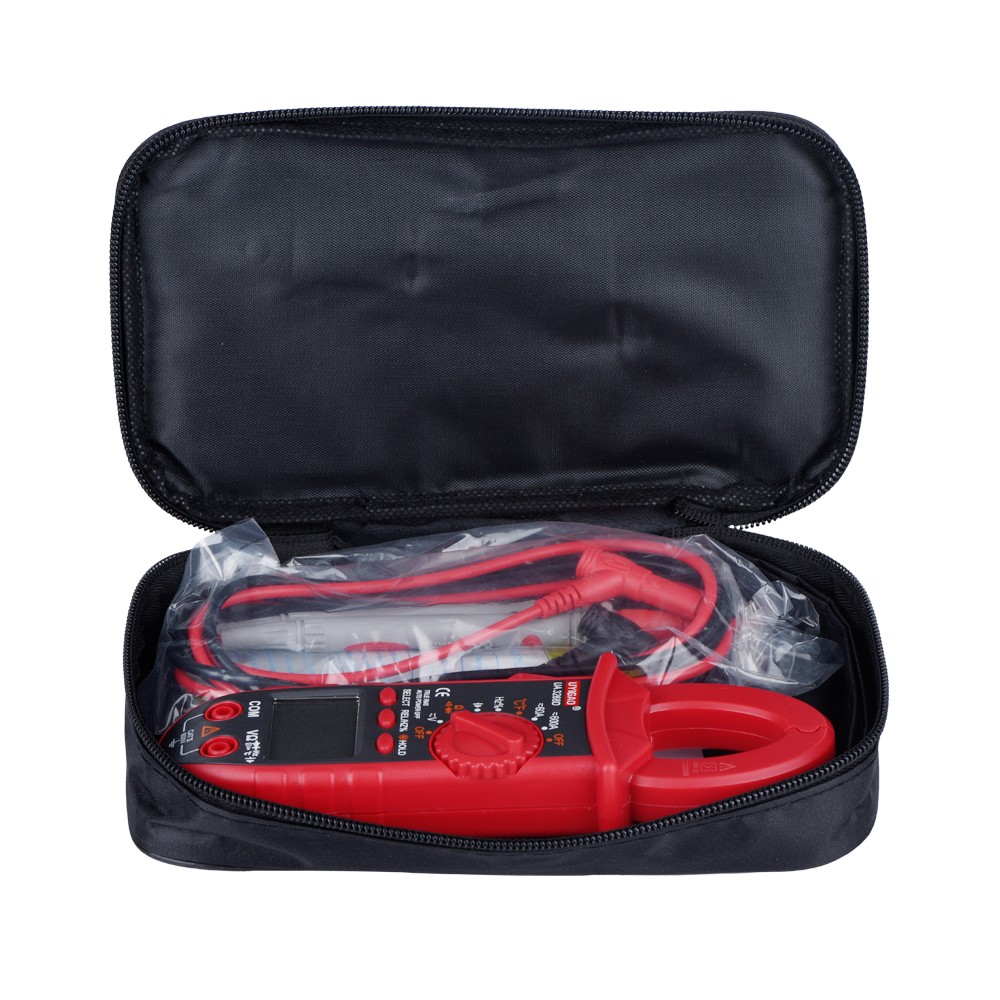

Standard packing	Color box, manuals
