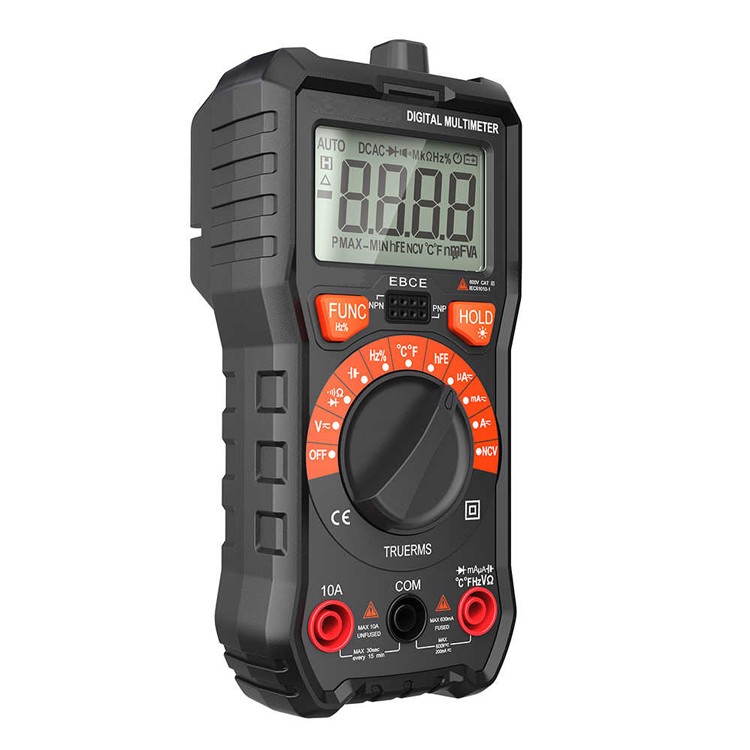

2000 counts compact digital multimeter UA9233D

2000 counts compact digital multimeter UA9233D

This auto ranging multimeter is capable of measuring AC/DC voltage and current, resistance, frequency, capacitance and temperature. Featuring double molded plastic housing, the ua9233d includes diode check and continuity functions and ships complete with test leads and a thermocouple probe for contact temperature measurements.

Auto Range Digital multimeter with Frequency Measurement

Digital Multimeter:Measuring DC/AC voltage,DC/AC current,Frequency,Duty cycle,
Diode,on-off test,Temperature measurement ect.

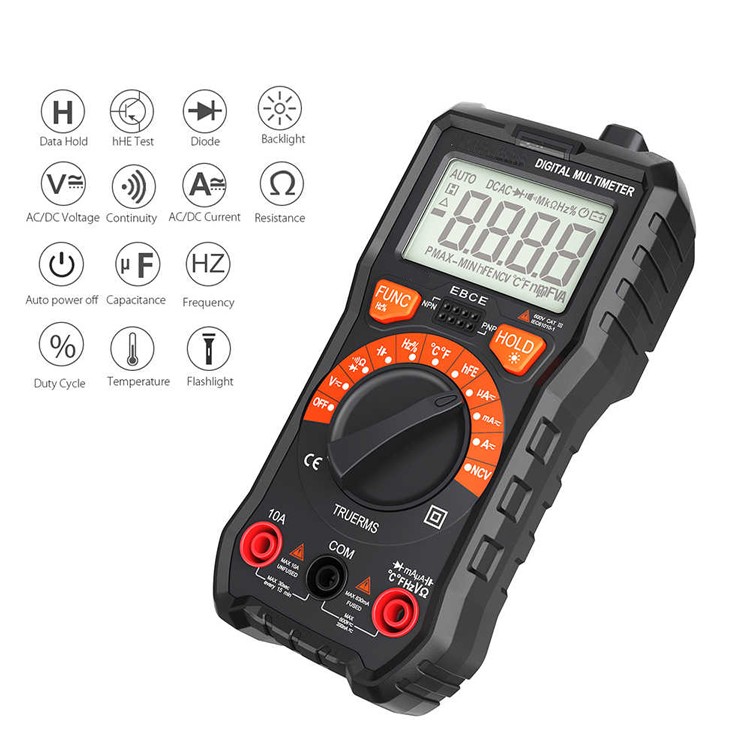

Multi Functions:Instrument with Data Hold,Unit symbol display,Auto Power OFF,
Full range overload protection.
Large LCD Display:3 number 1/2 digital LCD display,high accuracy, easy to use,
make you clear reading, intuitive display.

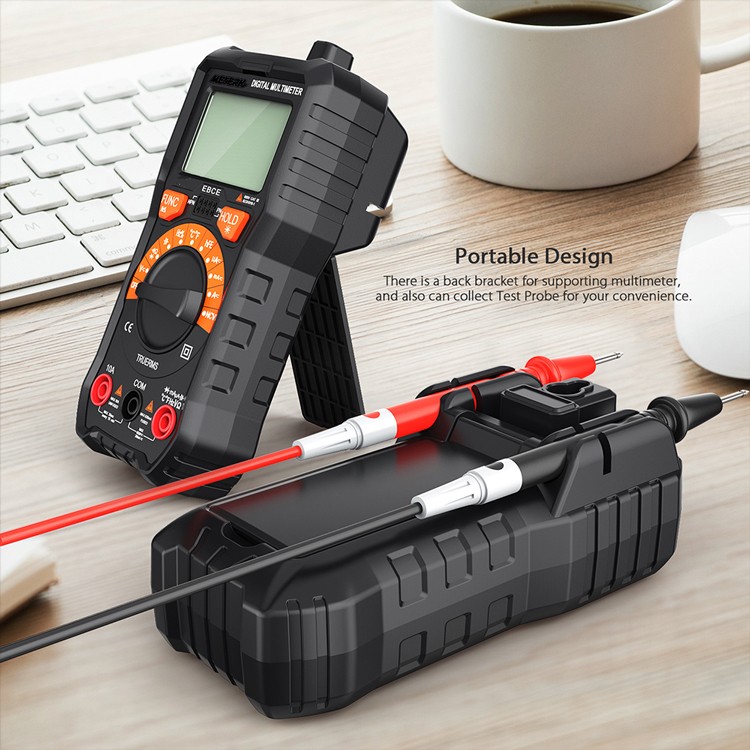

Portable Instrument:Comes with a handy carrying pouch and easy to use
- Perfect for use while on the go.

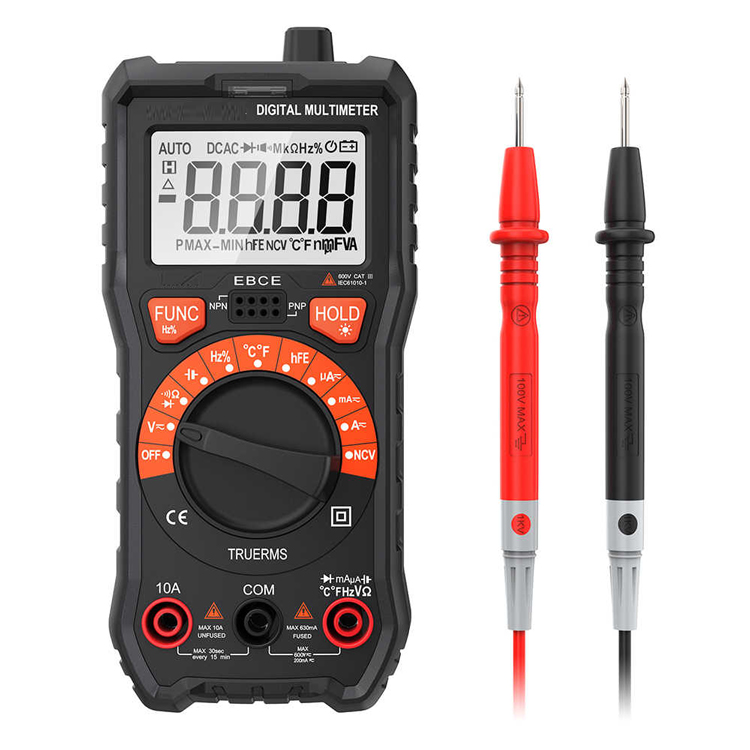

WHAT U GET:1x Digital Multimeter(1000V 10A),1 x User Manual,
1xTemperature probe.Power: 6F22 9V Battery ( Batteries are not included here.)

Basic function	Range	Basic accuracy
DC voltage	2/20/200/600V	± (0.5%+5)2/20V ± (0.8%+5) : 200V/600V
AC voltage	2/20/200/600V	± (0.8%+3d): 2/20V ± (1.0%+10d): 200V/600V
DC current	200uA/2000uA/20mA/ 200mA/2A/10A	± (1.5%+10d): 200uA/2000uA/20mA/200mA ± (2.5%+10d): 2A/10A
AC current	200uA/2000uA/20mA/ 200mA/2A/10A	± (1.5%+10d): 200uA/2000uA/20mA/200mA ± (2.0%+10d): 2A/10A
Resistance	600Ω/6/60/600KΩ /6/600MΩ	± (0.8%+3d): 600Ω/ 6/60/600kΩ ± (1.2%+3d): 6MΩ/600MΩ
Capacitance	9.999nF/99.99nF/999.9nF/ 9.999uF/99.99uF /999.9uF/9.999mF/99.99mF	± (4.0%+3d): 9.999nF/99.99nF/999.9nF/ 9.999uF/99.99uF /999.9uF ± (5.0%+3d): 9.999mF not specify: 99.99mF

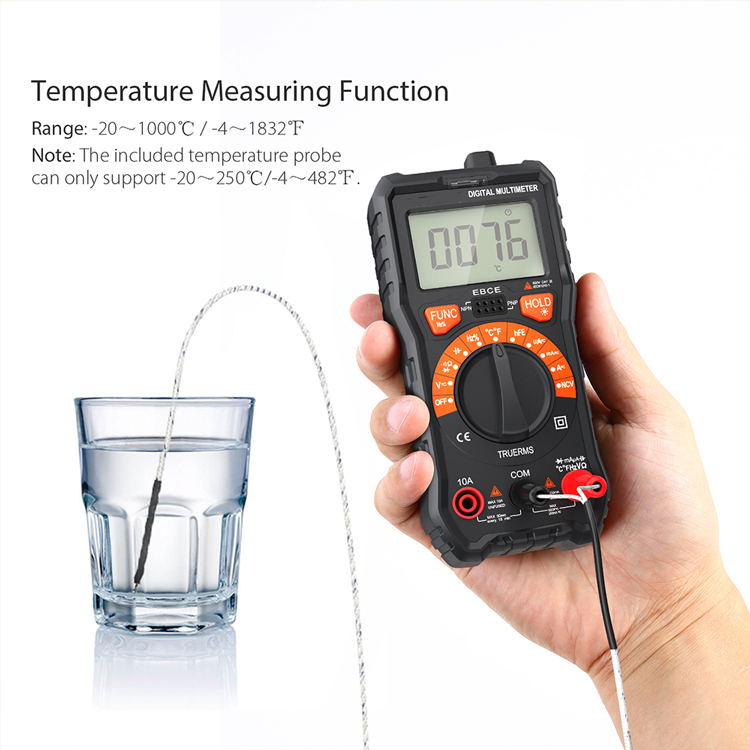

Temperature	-20 to 300°C 301 to 1000°C -4-600°F 601-1832°F	-20-300ºC: ± (1.0%+4) 301 to 1000°C: ± (1.9%+5) -4-600°F:± (1.2%+6) 601-1832°F ± (1.9%+6)
Frequency	9.999/99.99/999.9Hz 9.999/99.99/999.9kHz 9.999MHz	± (1.0%+3d)

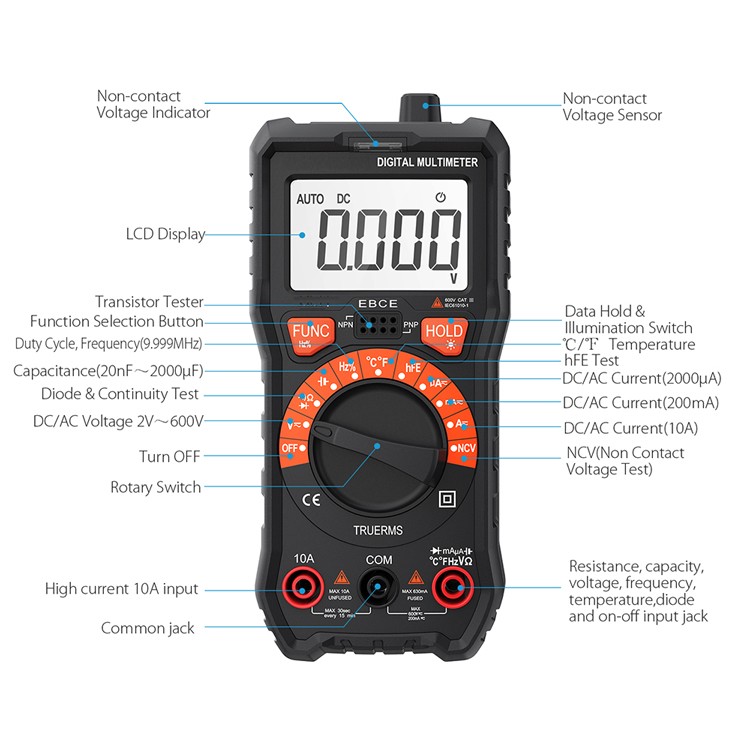

Special function

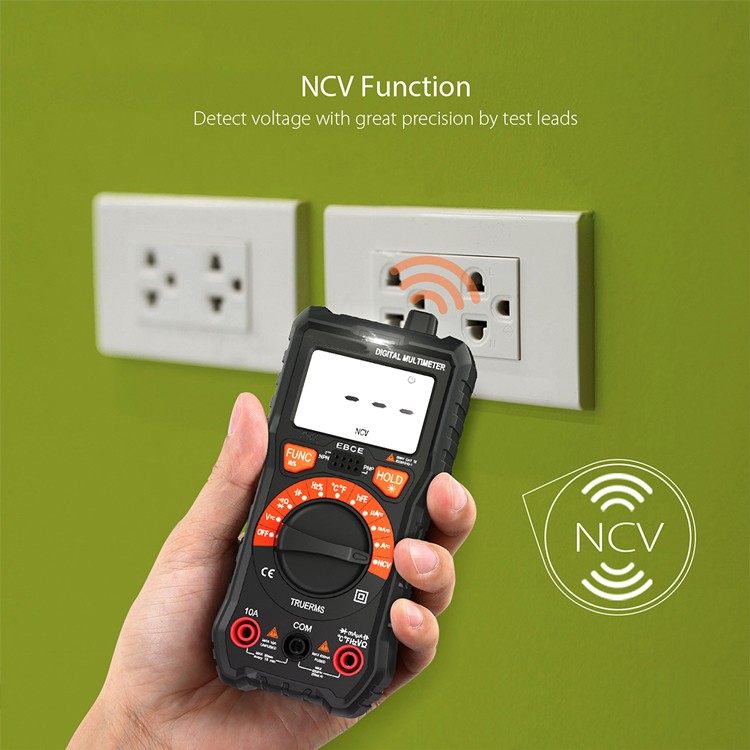

NCV test	V
Diode testing Triode testing	V
Low battery display	V
Data Hold/TRMS/NCV	V
Automatic turn-0ff	V
Function protection	V
Automatic resettable fuse	V

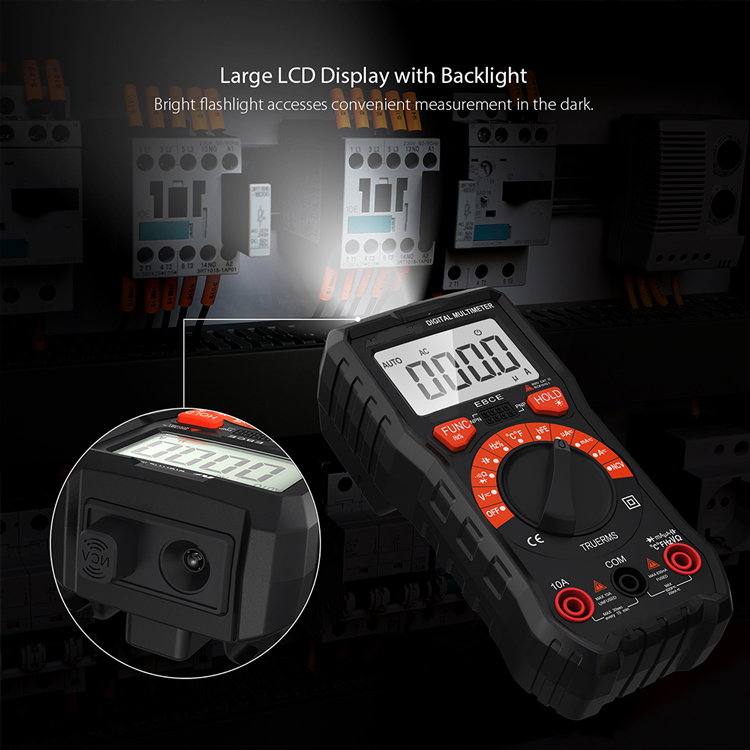

Backlight	V
Self recovered Safety	V
Operation mode	Auto range
Maximum display	1999

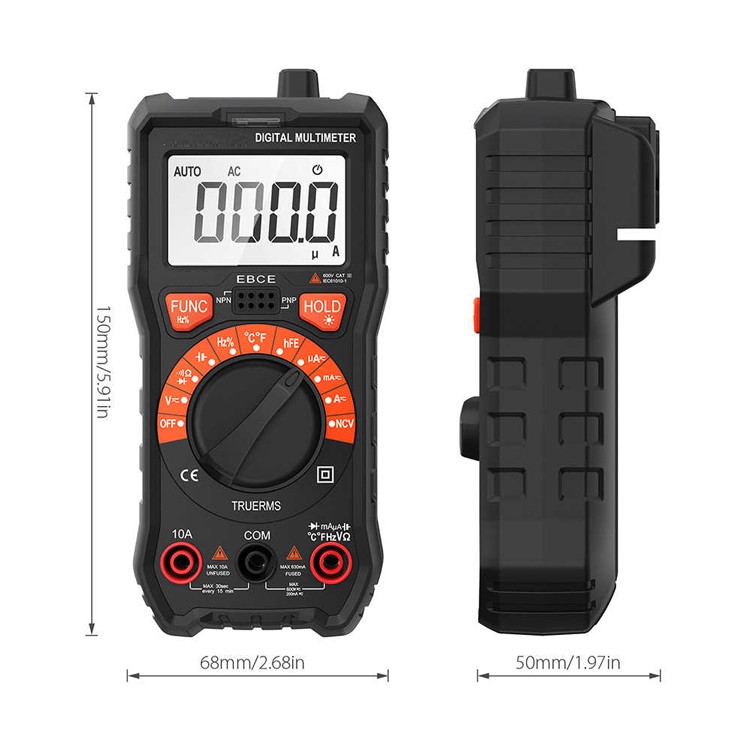

Weight	266g, 140 x 68 x 49mm
Power	9V battery (6F22)	NOT including by air freight.
