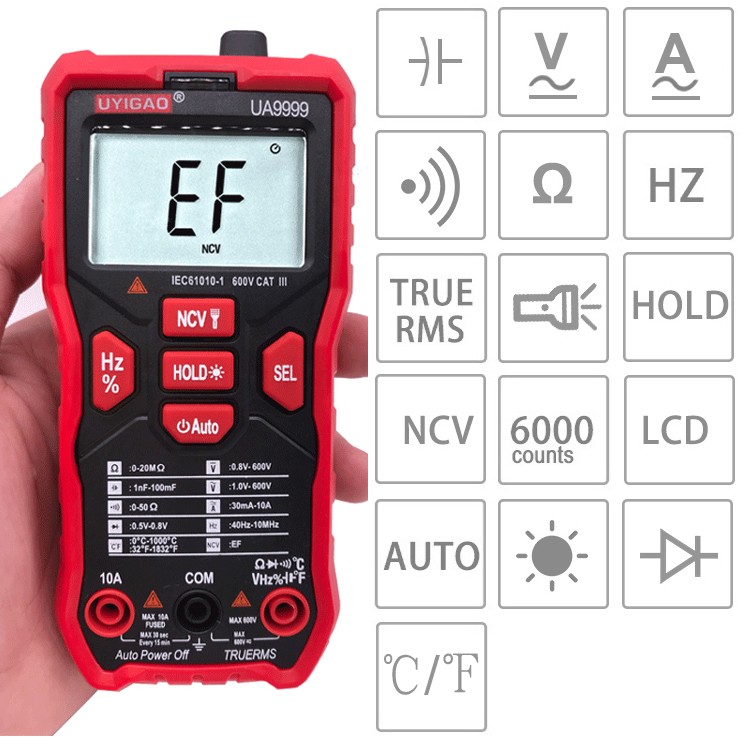

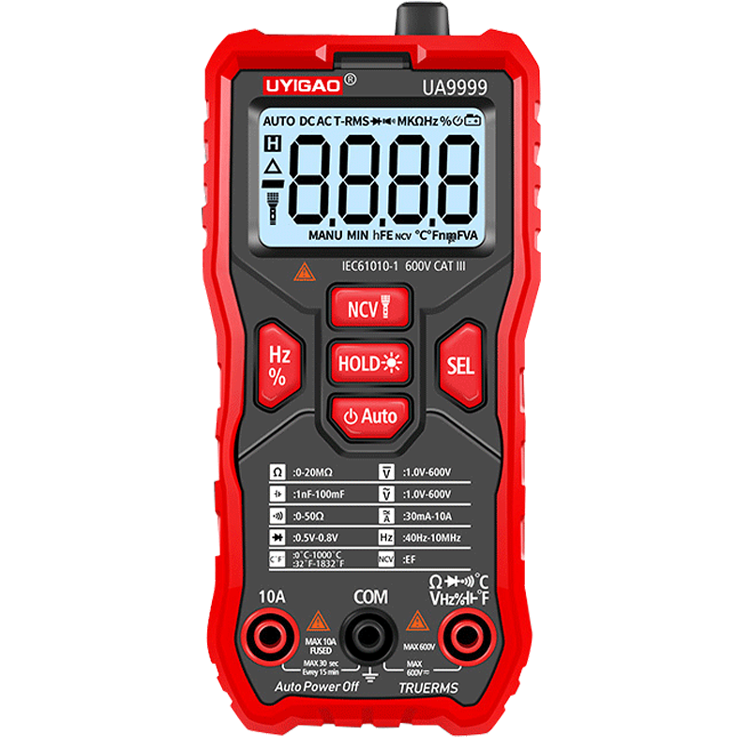

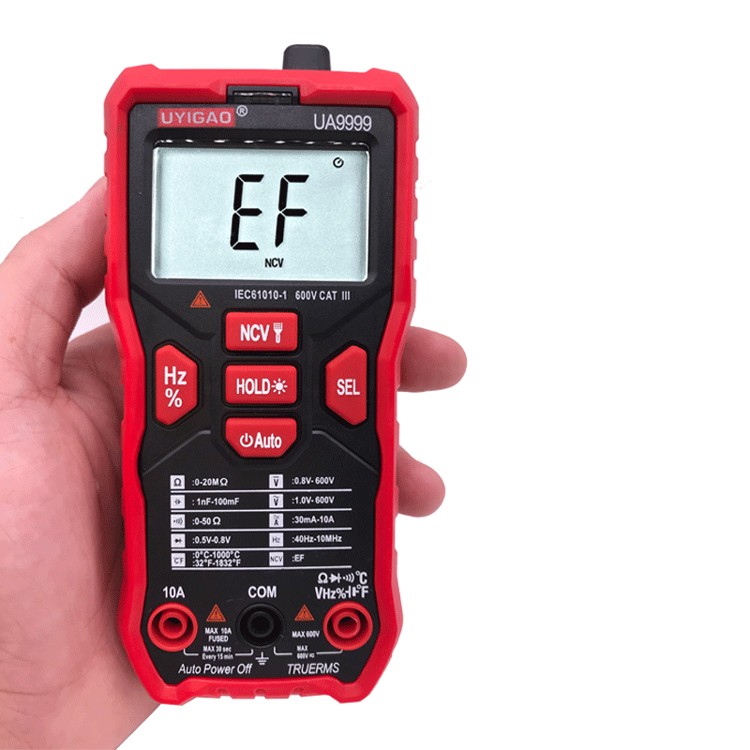

UA9999 smart digital multimeter

5999 button design Intelligent True RMS Professional Multimeters Diode Capacitor NCV Testers Multi Meter Auto digital multimeter

True-RMS Multi meter 6000 COUNTS High Precision Digital multimeter NCV Smart Multimetro Auto Ranging AC/DC Flashlight Multitester

Key Specifications/Special Features:

General characteristics:
1. Display: LCD
2. Maximum display: 5999, 3 5/6 automatic polarity display and unit display
3. Measurement methods: double integral A/D conversion
4. Sampling rate: 3 times /second
5. Over range display: OL
6. Low voltage display: display low voltage symbols
7. Working environment: 0 to 40°C Relative humidity: <80%
8. Storage environment: -10 to 50°C Relative humidity: <80%
9. Battery: 4.5V (3*1.5V AAA batteries) not included here.
10. Volume size: 140 x 68 x 49mm
11. Weight: about 266g (including battery)

Basic function	Range	Basic accuracy
DC voltage	6/60/600V	± (0.5%+5)6/60V ± (0.8%+5): 500V
AC voltage	6/60/600V	± (0.8%+3d): 6/60V ± (1.0%+10d): 500V
DC current	600uA/6000uA/60mA/ 600mA/6A/10A	± (1.5%+10d): 600uA/6000uA/60mA/600mA ± (2.5%+10d): 6A/10A
AC current	600uA/6000uA/60mA/ 600mA/6A/10A	± (1.5%+10d): 600uA/6000uA/60mA/600mA ± (2.0%+10d): 6A/10A
Resistance	600Ω/6/60/600KΩ /6/600MΩ	± (0.8%+3d): 600Ω/ 6/60/600kΩ ± (1.2%+3d): 6MΩ/60MΩ
Capacitance	9.999nF/99.99nF/999.9nF/ 9.999uF/99.99uF /999.9uF/9.999mF/99.99mF	± (4.0%+3d): 9.999nF/99.99nF/999.9nF/ 9.999uF/99.99uF /999.9uF ± (5.0%+3d): 9.999mF not specify: 99.99mF
Frequency	9.999/99.99/999.9Hz 9.999/99.99/999.9kHz 9.999MHz	± (1.0%+3d)
Special function

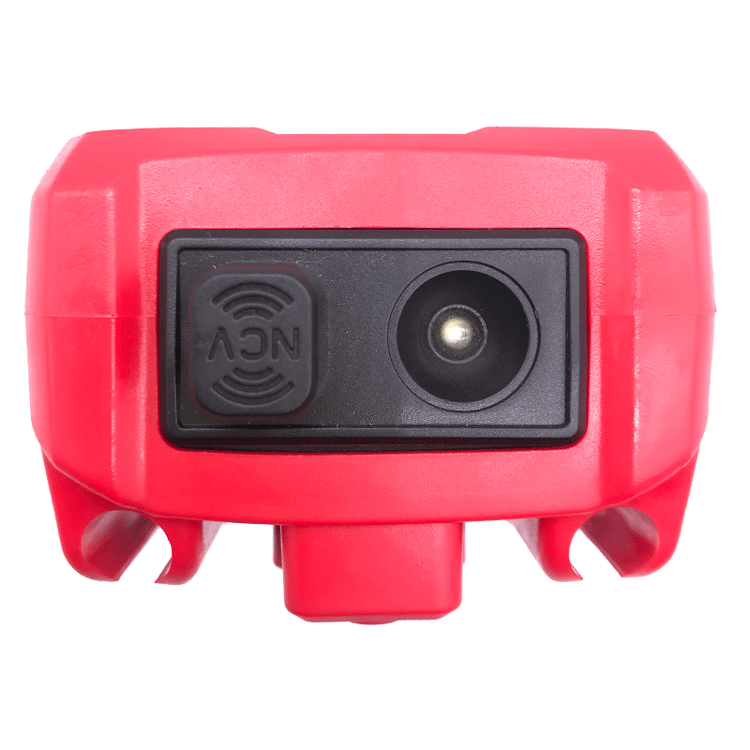

NCV test	V
Low battery display	V
Data Hold/TRMS/NCV	V
Automatic turn-0ff	V
Function protection	V
Automatic resettable fuse	V
Backlight	V
Self recovered Safety	V
Operation mode	Auto range
Maximum display	5999
Weight	266g, 140 x 68 x 49mm
Power	9V battery (6F22)	NOT including by air freight.

5999 digital multimeter for measuring capacitance, resistance, temperature, TRMS, NCV, torch, 10A AC/DC current, 600V AC/DC voltage (ONE-KEY, AUTO, Smart)
